SiUS091133
Outdoor Unit: RXS15/18LVJU
Removal Procedure
308
5.4
Removal of PCBs
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points

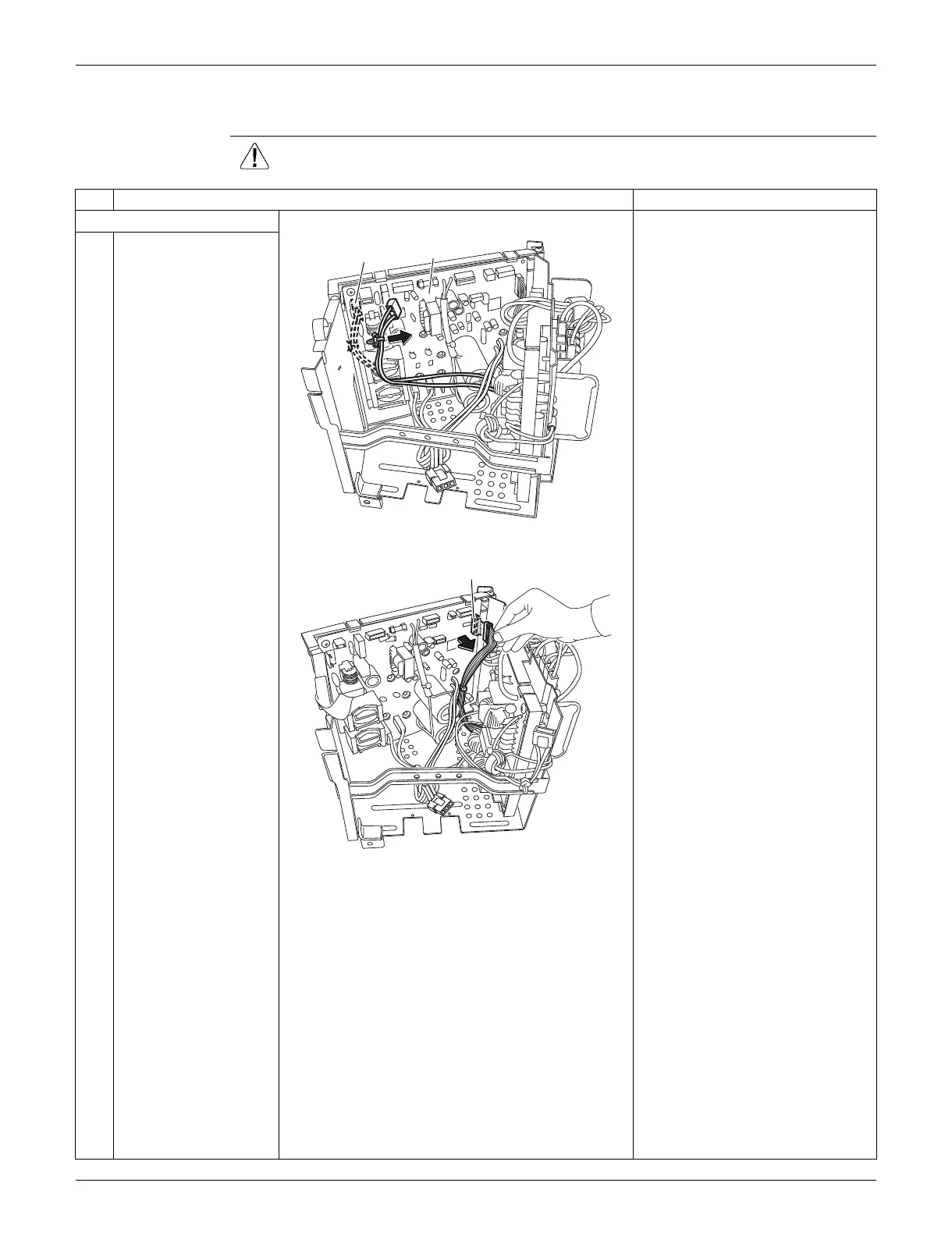

1.
Remove the main PCB.
[S12]:
for [HL4] [HN4] on filter PCB
1
Disconnect the
connector [S12] and
pull out the clamp.
2
Disconnect the
connector [S10].
[S10]: for [S11] on filter PCB
(R16959)
[S12]
Main PCB
(R16808)
[S10]
317
