SiUS091133
Outdoor Unit: RXS24LVJU

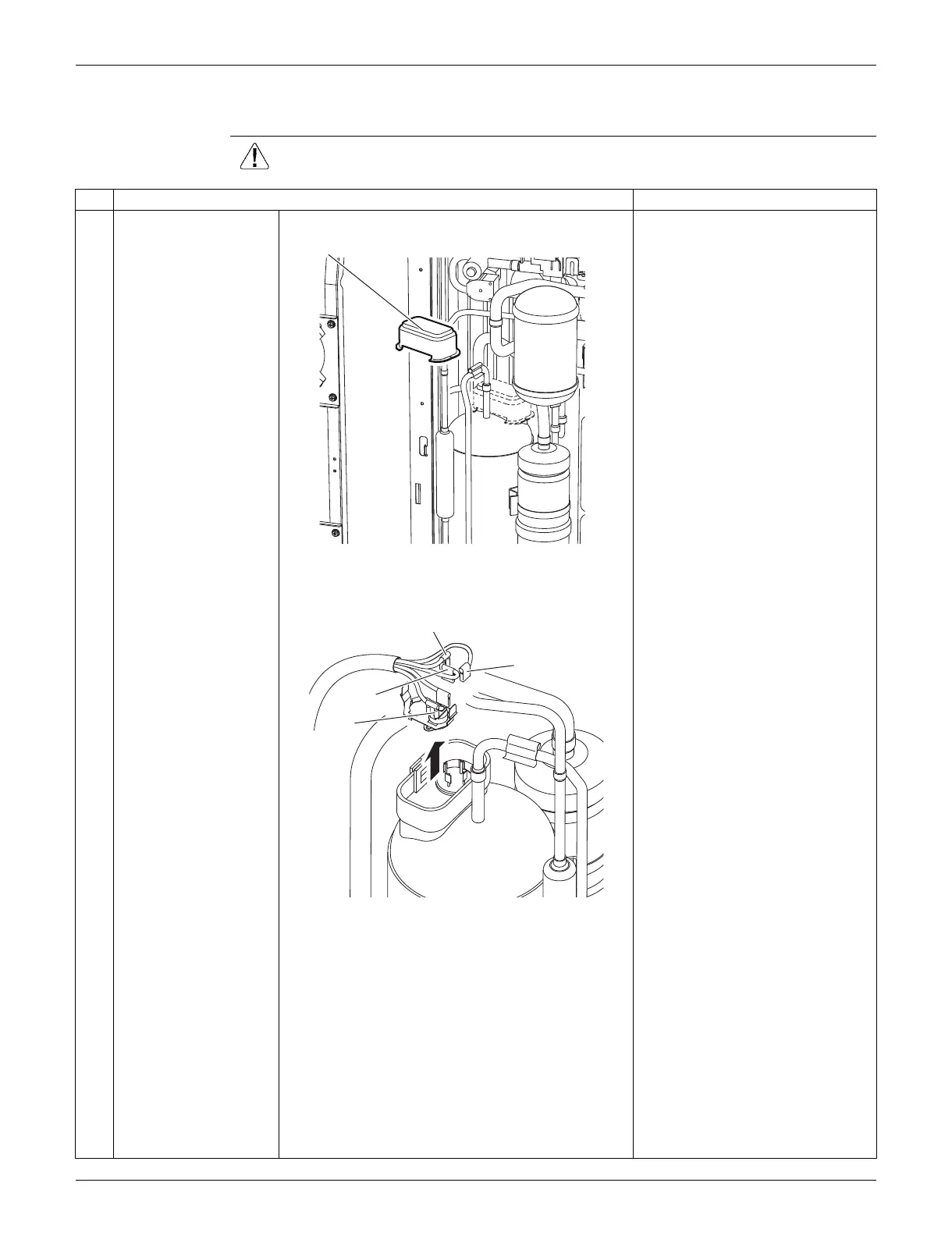

Removal Procedure
354
6.7
Removal of Compressor
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1
Remove the terminal
cover.
2
Pull out the 3 lead
wires.
3
Remove the overload
protector (OL).
T
er
minal cover
(R9690)
W (blue)
U (red)
V (yellow)
OL
(R9471)
363
365
