Outdoor Un
it: RXS09/12L
VJU
SiUS091133
281
Removal Procedure
4.4
Removal of Reactor / Partition Plate
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1.

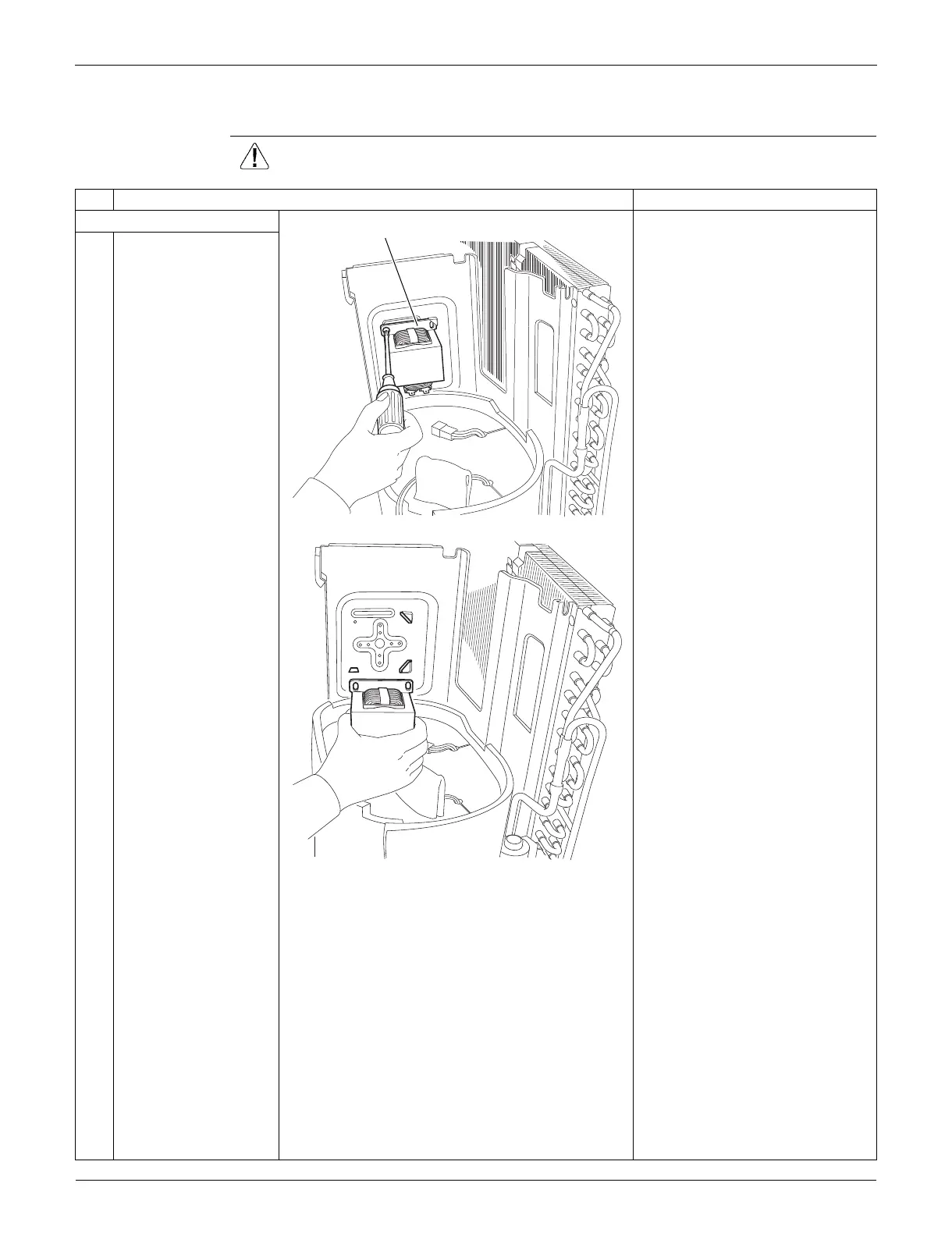

Remove the reactor.
Preparation
Remove the outer panels
according to the “Removal of
Outer Panels / Fan Motor”.
Remove the electrical box
according to the “Removal of
Electrical Box”.
1
Remove the screw and
remove the reactor.
Reactor
(R11879)
(R11880)
290
292
