Trial Operation and Field Settings 388
4.3 When 2 Units are Installed in 1 Room

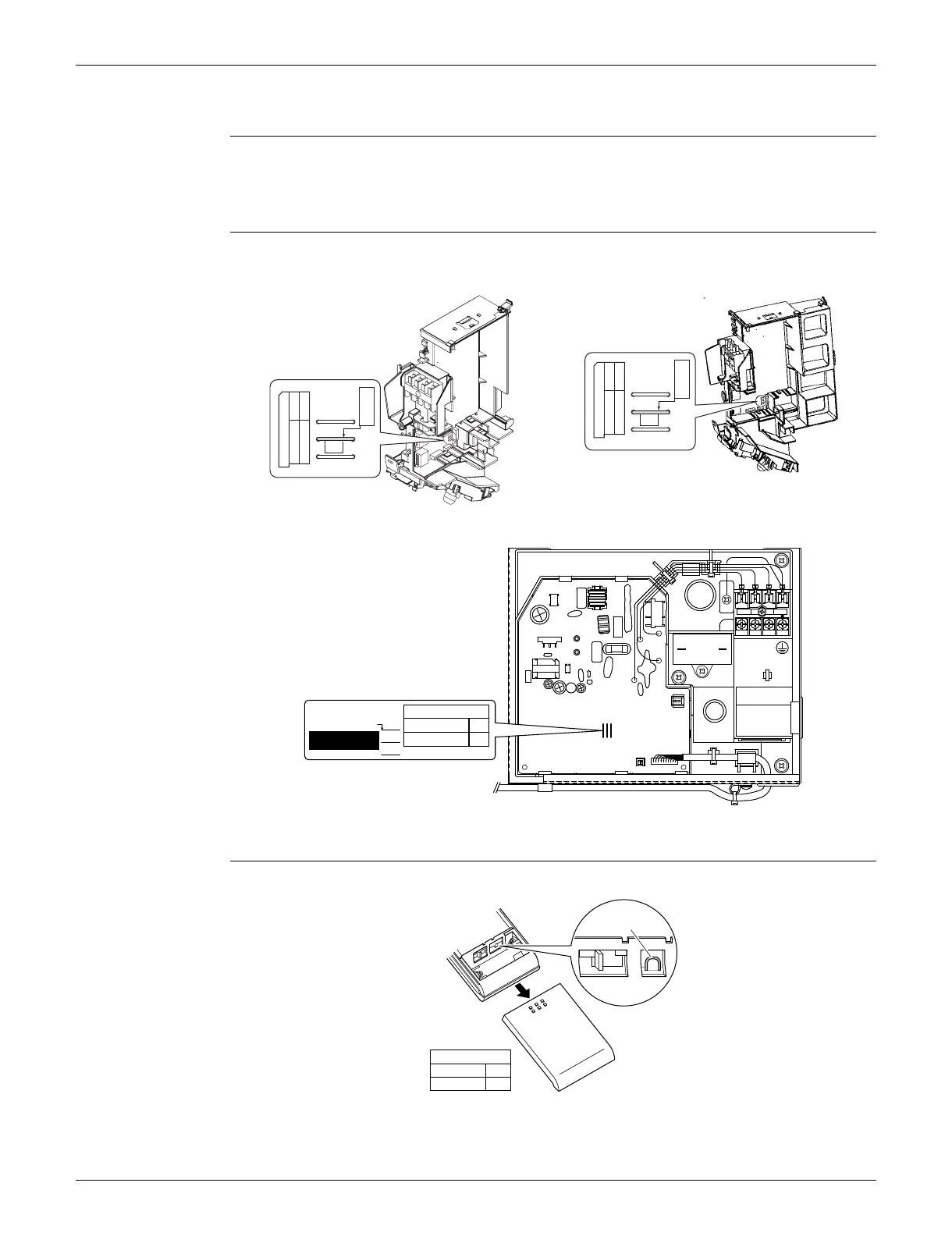

Outline When 2 indoor units are installed in 1 room, 1 of the 2 indoor units and the corresponding wireless
remote controller can be set for different addresses.
Both the indoor unit PCB and the wireless remote controller need alteration.
Indoor Unit PCB  Cut the address setting jumper JA on the control PCB.
Wireless Remote
Controller
 Cut the address setting jumper.
FTXS09/12LVJU FTXS15/18/24/30/36LVJU
FDXS series
ADDRESS
JC
JA
JB
ADDRESS:JA
EXIST
1
CUT
2
(R9665)
JA
ADDRESS
ADDRESS
JC
JA
JB
ADDRESS:JA
EXIST
1
CUT
2
ADDRESS: JA
CUT
EXIST
1
2
ADDRESS
JA
JC
JB
(R16921)
(R13525)
ADDRESS
EXIST
CUT
1
2
Jumper
