Instruction SiE12-411
132 System Configuration
"
To 3-D Airflow
1. 3. press “SWING button”: the
“”
“”
display will light up and the flaps and louvres will
move in turn.
"
To cancel 3-D Airflow
2. 4. press “SWING button”
Notes on louvres angles

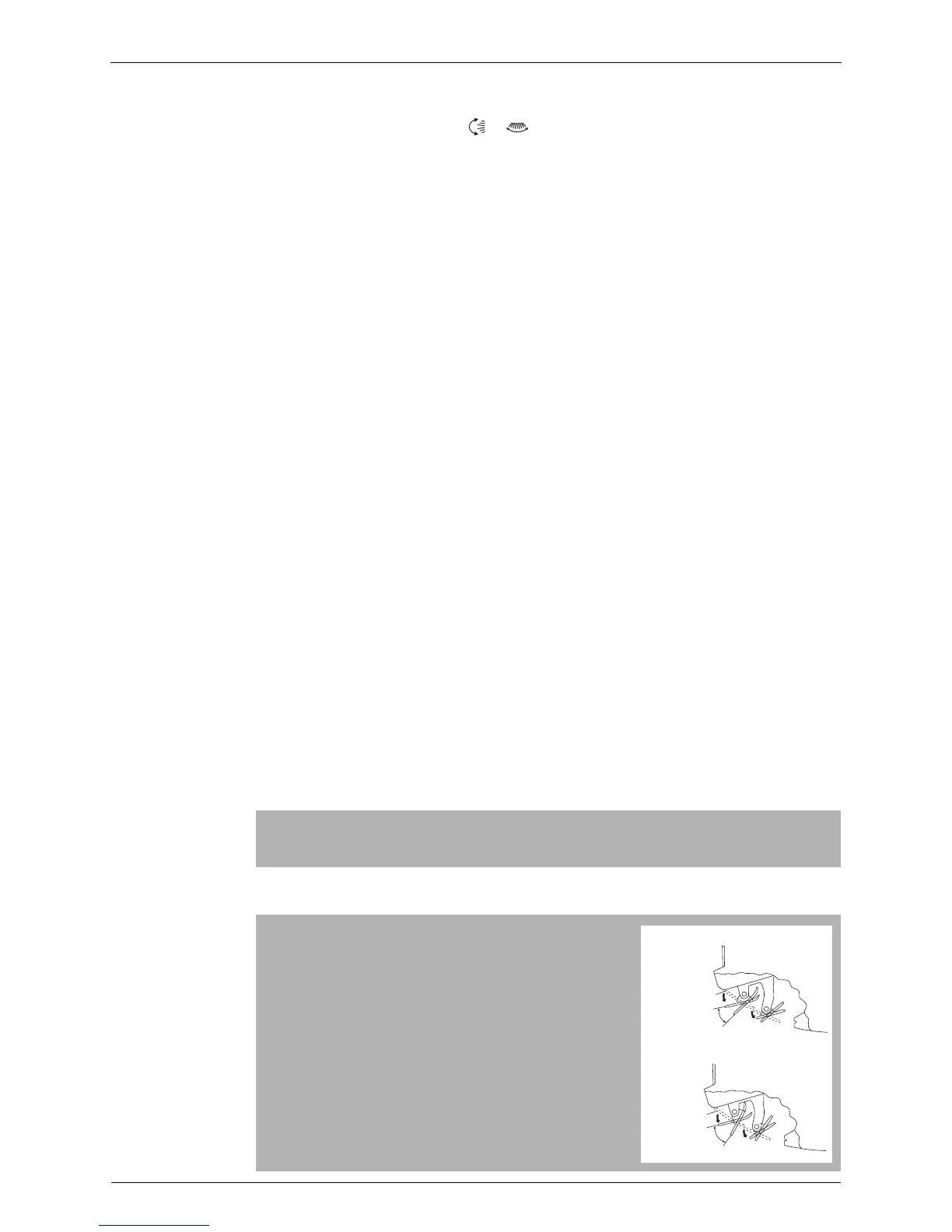

Notes on flap angle
"
ATTENTION
• Always use a remote control to adjust the louvres angles. In side the air outlet, a fan is rotating
at a high speed.
• When “
SWING button
” is selected, the flaps swinging
range depends on the operation mode. (See the figure.)
Three-Dimensional (3-D) Airflow
• Using three-dimensional airflow circulates cold air, which
tends to collected at the bottom of the room, and hot air,
which tends to collect near the ceiling, throughout the
room, preventing areas of cold and hot developing.
"
ATTENTION
• Always use a remote control to adjust the flaps angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
STOP
In COOL or DRY mode
STOP
In HEAT or FAN mode
COOL
approx. 10˚~40˚
DRY
approx. 5˚~35˚
HEAT
approx. 15˚~55˚
FAN
approx. 5˚~55˚
To Next Page
