SiE12-411 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 63
1.3 Duct Connected Type
Connectors
Note: Other designations
Control PCB Detail (PCB 1)
" Refer to PCB (1) Control on P60.

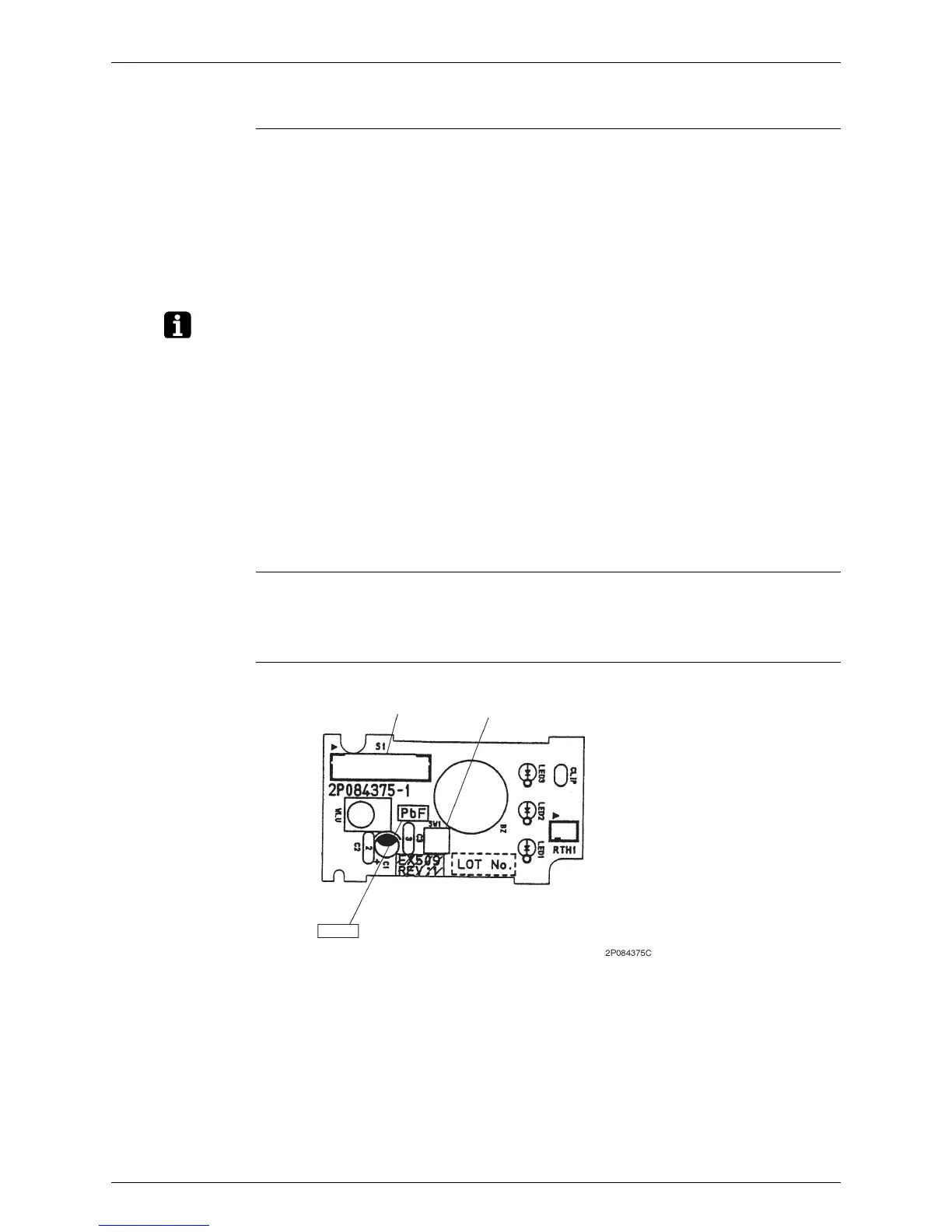

Display PCB Detail (PCB 2)
1) S1 (on PCB 1) Connector for fan motor
2) S1 (on PCB 2) Connector for control PCB
3) S7 Connector for fan motor
4) S21 Connector for centralized control to 5 rooms
5) S26 Connector for display PCB
6) S32 Connector for room temp / Heat exchanger thermistor
1) V1 Varistor
2) JA Address setting jumper
JB Fan speed setting when compressor is OFF on thermostat
JC Power failure recovery function
∗ Refer to page 257 for more detail.
3) SW1 Forced operation ON/OFF switch
4) LED1 (GRN) LED for operation
5) LED2 (YLW) LED for timer
6) LED3 (RED) LED for HOME LEAVE operation
S1
SW1
Pb Free
To Next Page
