SiE12-411 Outdoor Unit (50 / 52 / 58 / 68 / 75 Class)
Removal Procedure 243

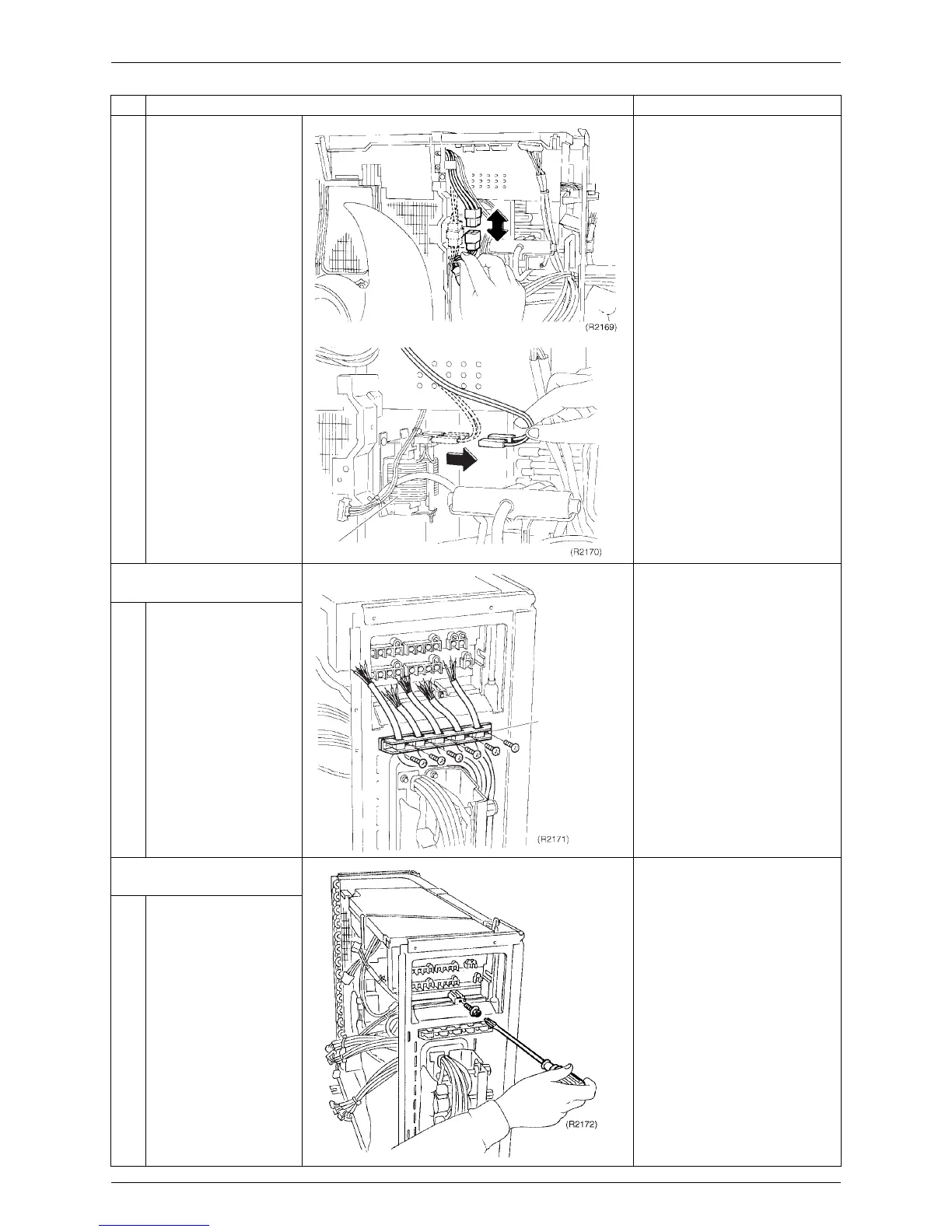

4
Disconnect the
compressor relay
connector.
5
Remove the reactor
lead wire.
3. Removing the wiring
fixture
1
Remove 6 screws of
the wiring fixture.
4. Removing the electrical
box.
1
Remove 1 screw of the
electrical box.
Step
Procedure Points
Reactor
Wiring fixture
