Installation
* Optional connections for safety thermostat
Terminal Description Max.
load
20 Supply voltage 230 V a.c. - neutral (N)
21 Supply voltage 230 V a.c. - live (L)
22 Optional connections for safety thermostat
23 Optional connections for safety thermostat
24 M1 Actuator - open, alt. thermo actuator (ABV) 15 VA
25 M1 Actuator - close 15 VA
26 M1 Actuator - neutral
27 P1 Circulation pump - neutral
28 P1 Circulation pump - live (relay R1) 4 (2) A
29 Not to be used
30 Not to be used
Wire cross section: 0.5 - 1.5 mm
2
Incorrect connection can damage the TRIAC outputs.

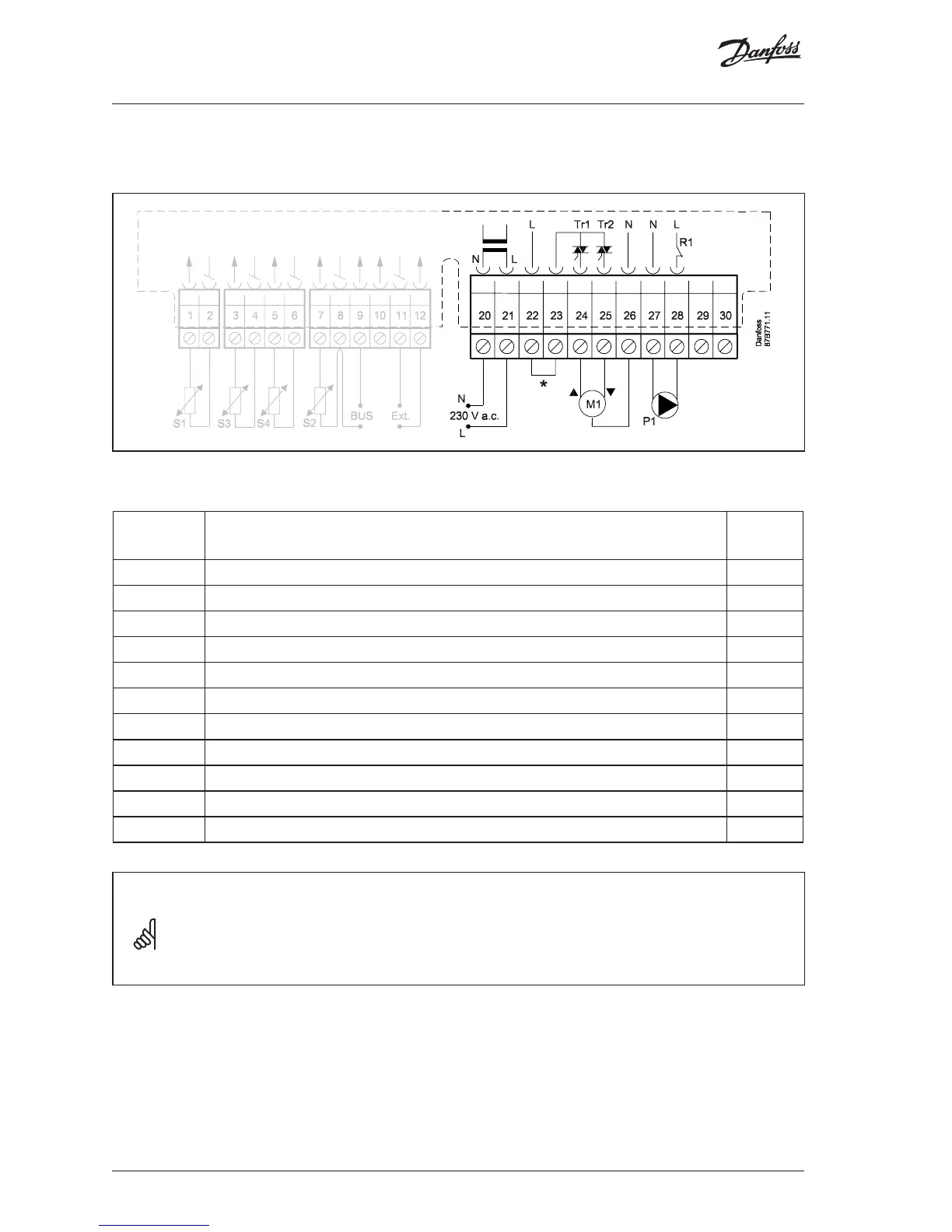

Electrical connections - 230 V a.c. - in general
