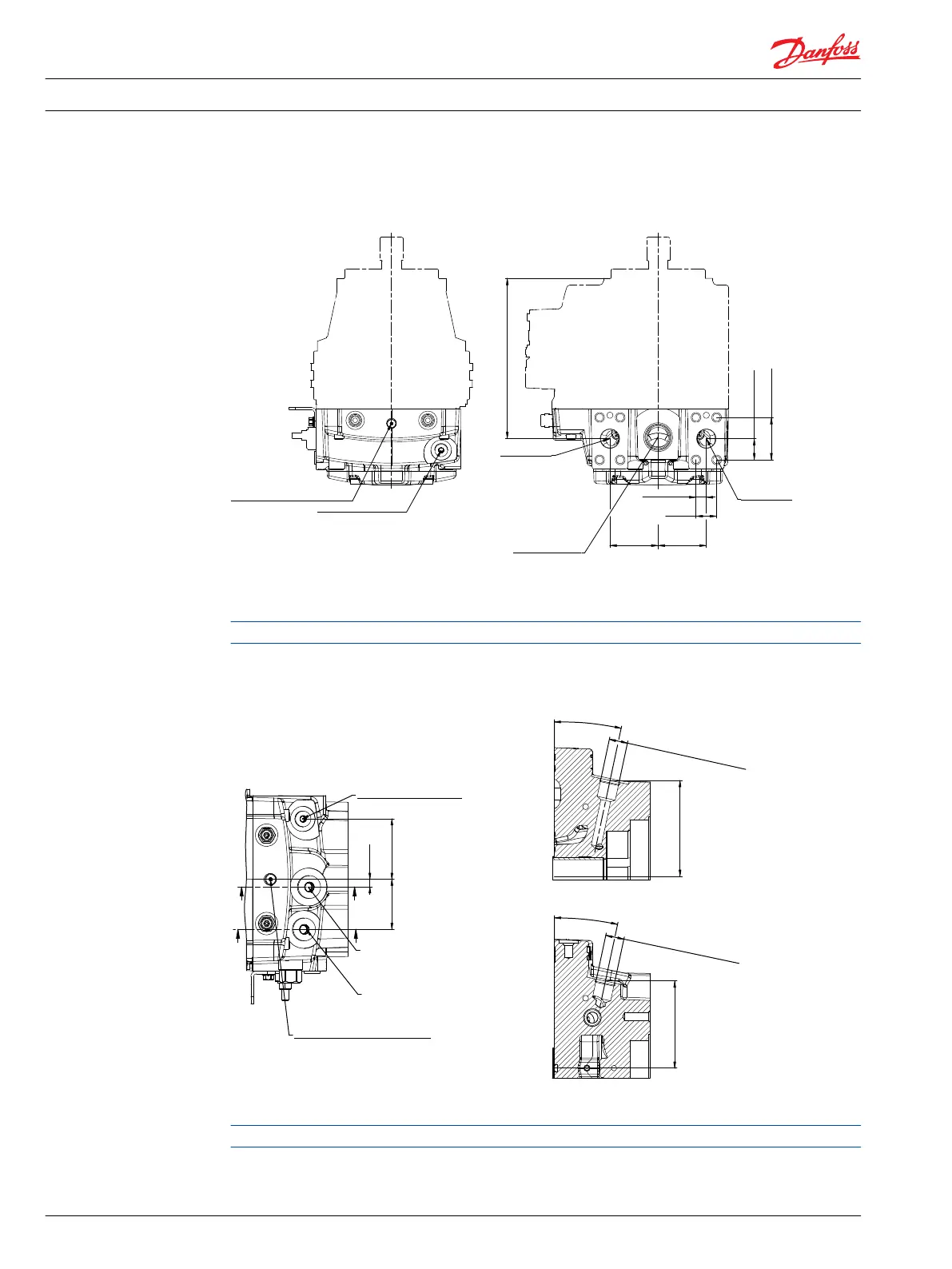

H1P 069/078, suction filtration, option L
[8.505]
+0.024
-0.020
216.015
+0.6
-0.5
System port "B"
Ø25.4 - 450bar
Split flange boss
Per ISO 6162
M12 x 1.75
20 min.
Full thread depth
Recommended screw-in depth
1.5 x thread dia
System port "A"
Ø25.4 - 450bar
Split flange boss
Per ISO 6162
M12 x 1.75
20 min.
Full thread depth
Recommended screw-in depth
1.5 x thread dia
Charge inlet port "S"
Port ISO 11926-1 -1 5/16-12
Ø63 max clearance dia for fitting
8x 28.6 ±0.25 [1.126 ±0.010] 4x 57.2 ±0.25 [2,252 ±0.010]
8x 13.9 ±0.25
[0.547 ±0.010]
4x 27.8 ±0.25
[1.094 ±0.010]
[2.559]
+0.004
-0.008
65
+0.1
-0.2
[2.559]
+0.004
-0.008
65
+0.1
-0.2
System B gauge port "MB"
Port ISO 11926-1 -9/16-18
Ø28 max clearance dia for fitting
Charge pressure construction port
Port ISO 11926-1 -5/16-24
P003 329E
Please contact Danfoss Power Solutions representative for specific installation drawings.
Remote full charge pressure filtration, option P for end cap option F5 (SAE-C PTO)
67 ±1
[2. 638 ±0.039]
8.5 ±1
[0.335±0.039]
55.5 ±1
[2.185 ±0.039]
System B gauge port "MB"
Port ISO 11926-1 -9/16-18
Ø28 max clearance dia for fitting
Charge filtration port "E"
Port ISO 11926-1 -7/8-14
Ø42 max clearance dia for fitting
From filter
Charge filtration port "F"
Port ISO 11926-1 -7/8-14
Ø42 max clearance dia for fitting
To filter
Charge pressure construction port
Port ISO 11926-1 -5/16-24
FF
E E
96.5 ±1
[3.799 ±0.039]
E-E
12°
Charge filtration port "E"
Port ISO 11926-1 -7/8-14
Ø42 max clearance dia for fitting
From filter
106.6 ±1
[4.197 ±0.039]
F-F
Charge filtration port "F"
Port ISO 11926-1 -7/8-14
Ø42 max clearance dia for fitting
To filter
12°
P301 298
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information
H1 Axial Piston Single Pumps, Size 069/078
Filtration
64 11062169 • Rev 0700 • November 2015
