3.3 Location of Options within an Enclosed Drive
e30bu177.11
1
2
3
4
5
6
7
8
9
10

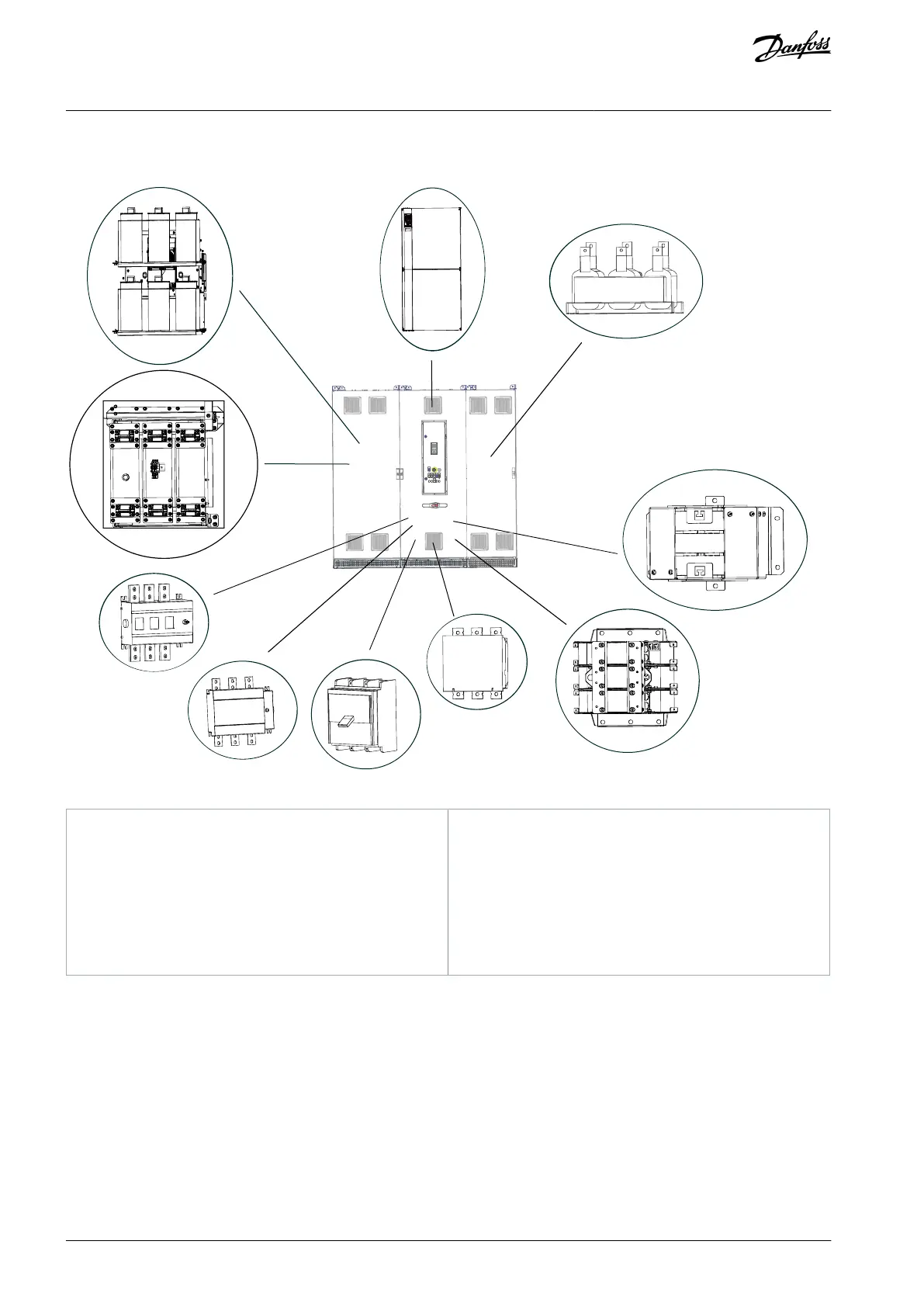

Illustration 4: Visual Representation of a D9h Enclosure and the Locations of Available Options
1
Passive harmonic filter (PHF)
2
Line reactor
3
Non-fusible disconnect
4
Fusible disconnect
5
Molded-case circuit breaker (MCCB)
6
Mains contactor
7
dU/dt filter
8
Common-mode filter
9
Sine-wave filter
10
Drive module (varies in power rating)
AQ262139143212en-000301 / 130R087920 | Danfoss A/S © 2021.10
Product Overview
VLT® AutomationDrive FC 302
Operating Guide

Danfoss VLT AutomationDrive FC 302 Specifications

General

Category	DC Drives
Control Method	Flux Vector Control
Communication Options	CANopen, PROFIBUS
Cooling	Forced convection
Enclosure	IP20, IP21, IP55, IP66
Protection Class/Rating	IP20
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
Approvals	CE, UL, cUL
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Output Voltage	0 V to Input Voltage
