Danfoss VLT AutomationDrive FC 302 User Manual

e30bu187.11
-XDL.1
-XD4.1
-XD11.1
7
8
9
10
R
TS
-XD4.1
-XD4.3
-XD11.3
-XDL.1
2
3
4
5
6
L1R
L3T
L2S
1

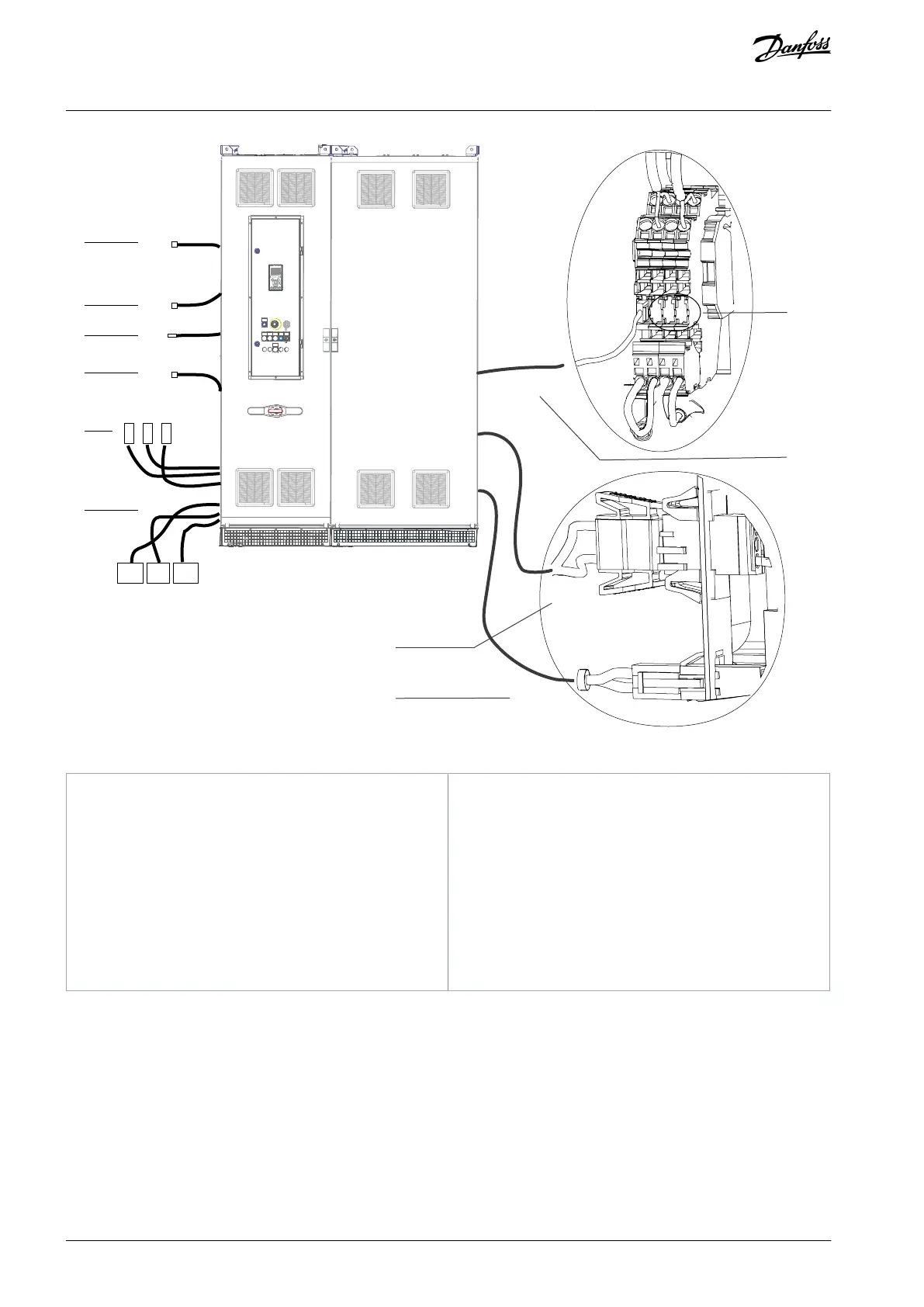

Illustration 40: Split Shipment Electrical Connections (Input Power Options Cabinet + E5h Drive Cabinet)
1
Cabinet heater supply harness to input filter cabinet
2
DC-link harness to fan supply in input filter cabinet
3
Thermal protection harness to input filter cabinet
4
PHF contactor 1 supply harness to input filter cabi-
net (only with PHF option)
5
Mains cables (R/S/T) to input terminals (R/S/T) in the
input filter cabinet
6
Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input filter cabinet
7
DC-link harness to fan supply to output filter cabinet
8
Cabinet heater supply harness to output filter cabi-
net
9
Available terminal connections
10
Thermal protection wiring harness to output filter
cabinet
AQ262139143212en-000301 / 130R087974 | Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide

Danfoss VLT AutomationDrive FC 302 Specifications

General

Category	DC Drives
Control Method	Flux Vector Control
Communication Options	CANopen, PROFIBUS
Cooling	Forced convection
Enclosure	IP20, IP21, IP55, IP66
Protection Class/Rating	IP20
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
Approvals	CE, UL, cUL
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Output Voltage	0 V to Input Voltage
