16 Installation
Load Supplies
Embossing supplies include topping foil and indent ribbon. The topping foil is applied to the
embossed characters and can be applied to up to five lines of characters. The indent ribbon is
used to apply black (or white) color to a single line of indented characters. The printer supplies
include a cleaning sleeve.
If the embosser supplies are preloaded into their cartridges, install the cartridges into the
embosser component.
Load the Indent Ribbon Cartridge
1. Prepare the indent ribbon cartridge and
indent roll.
a. Unlock and open the embosser
supplies access door and remove the
indent ribbon cartridge from the
embosser. The indent ribbon cartridge
is on the right.
b. Place the indent ribbon cartridge on a
flat surface with the spindles facing up.
c. Remove the indent roll from its
package.
IMPORTANT! Do not separate the silver
take-up spool away from the blue
supply spool.

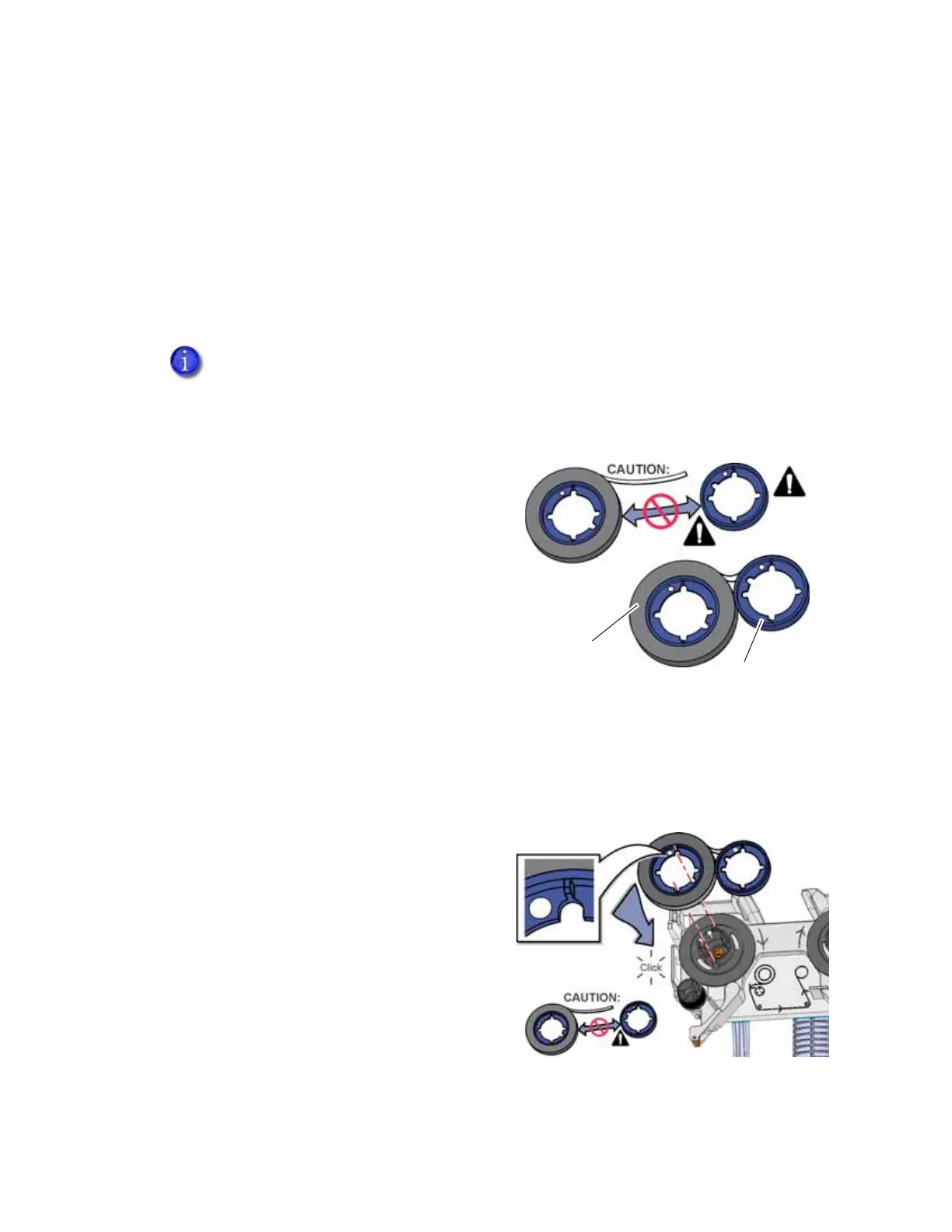

2. Secure the supply spool into the spindle.
a. Match the keyed pattern of the supply
spool hub with the left-side spindle.
b. Push the supply spool into the spindle
until it clicks securely into place.
The emboss and indent ribbon cartridges are not interchangeable; they fit only into
the designated cartridge area.
IMPORTANT: Do not separate.
Supply
Spool
Take-up
Spool
