2.10.1 Desktop Mounting
For desktop usage, you can mount the cradle either on the horizontal base, for reduced
overall dimensions, or on the inclined base for a more ergonomic taking out and
insertion of the reader onto the cradle.

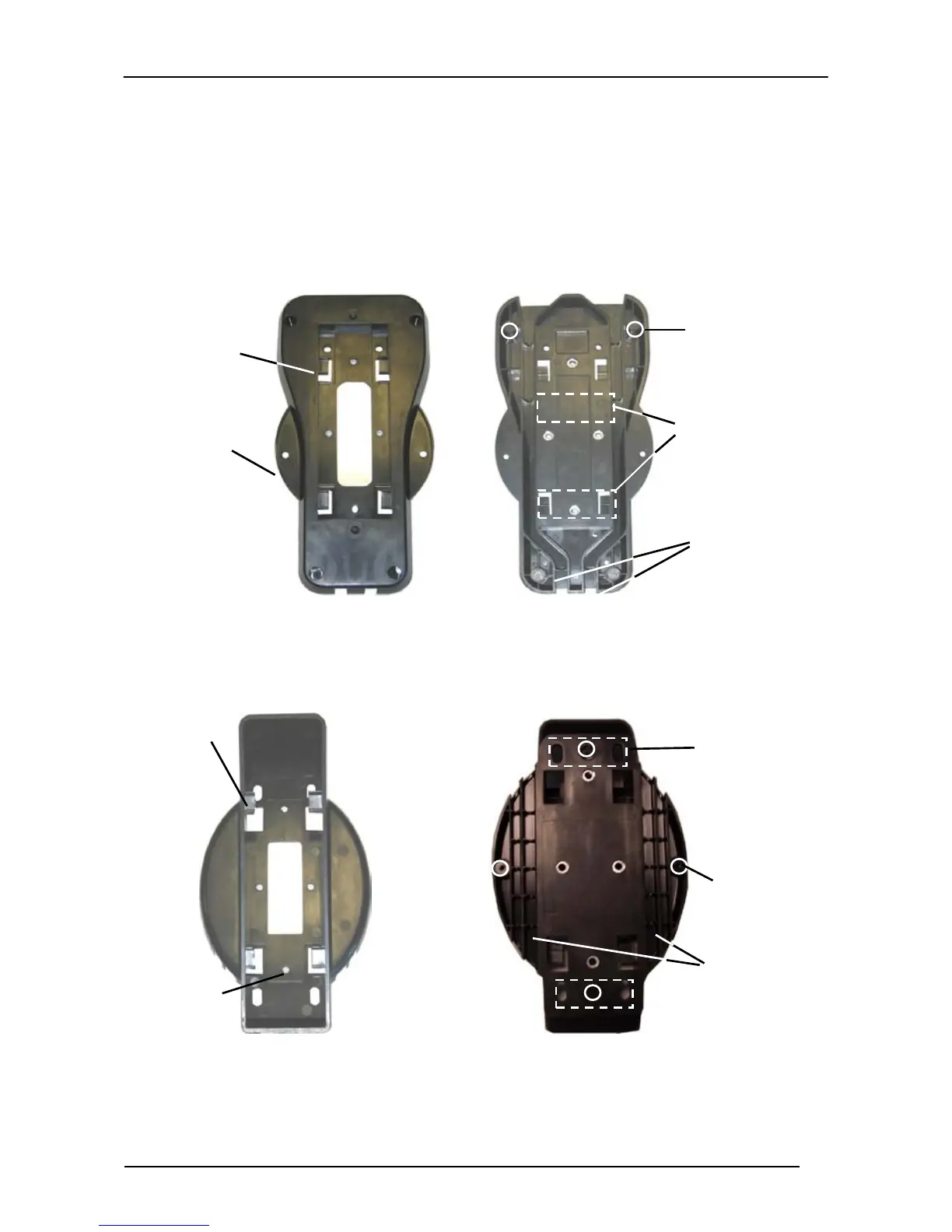

Horizontal base
Top View Bottom View
Inclined base
Top View Bottom View
Mounting
Tabs (4)
Mounting
Holes (2)
Rubber Foot
Seat (4)
Adhesive Strip
Seat (2)
Cable
Channels
Mounting
Tabs (4)
Mounting
Holes (4)
Cable
Channels
Adhesive Strip
Seat (2)
Rubber Foot
Seat (4)
