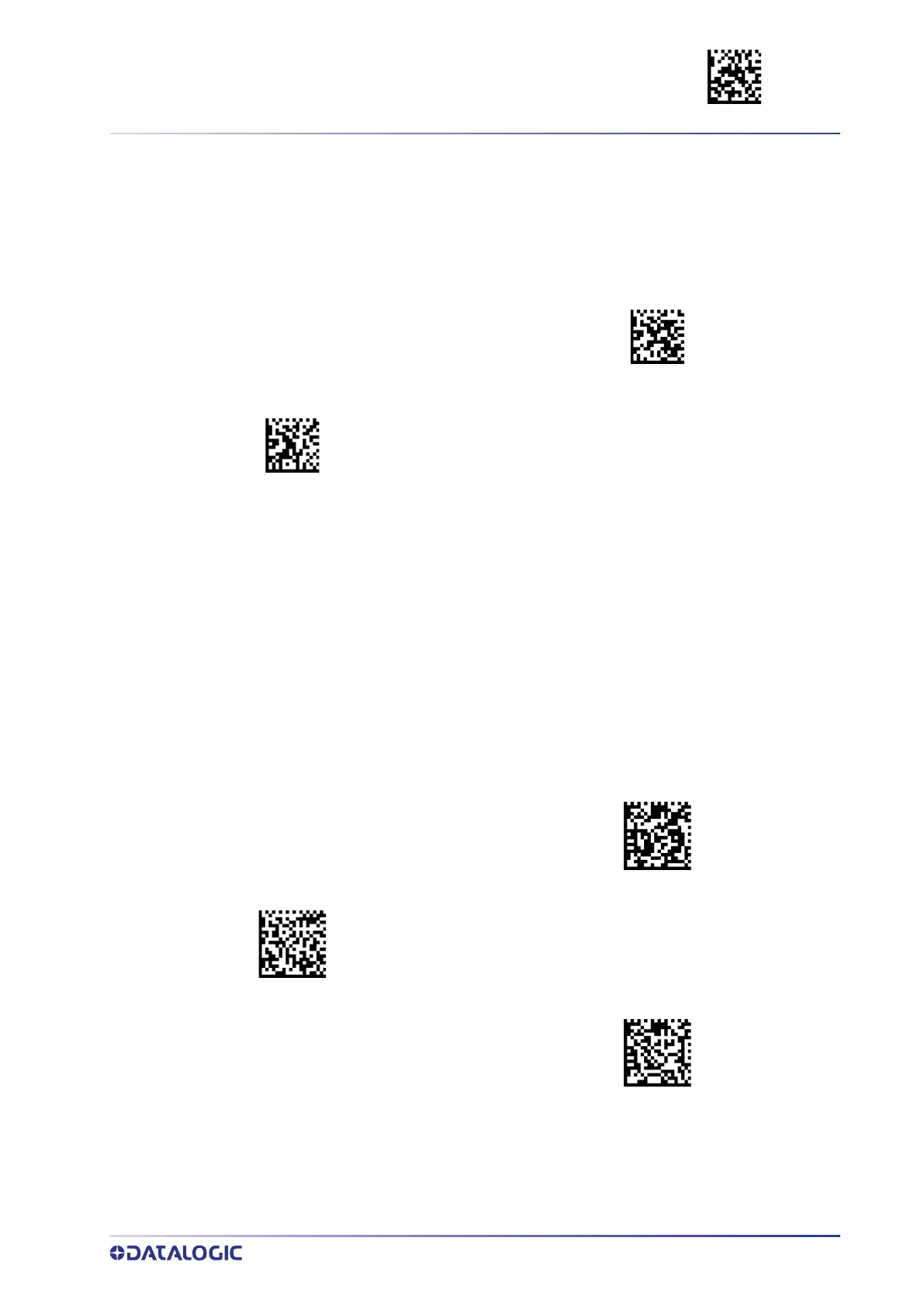

DATA MATRIX ENTER/EXIT PROGRAMMING MODE
PRODUCT REFERENCE GUIDE
203
DATA MATRIX
Data Matrix Enable / Disable
Enables/disables ability of reader to decode Data Matrix labels.
Data Matrix Square/Rectangular Style
Specifies the options available when reading Data Matrix with different form factors.
Choices are:
• Square Style
• Rectangular Style
• Both Square and Rectangular Style
The configuration item can also be configured as a bit mask to filter one or more Data
Matrix labels with different symbol size AND shape styles.
$CDMEN00
Data Matrix = Disable
Data Matrix = Enable
$CDMEN01
$CDMDM3FFF0BDF
Data Matrix Dimensions Mask = Square Style
Data Matrix Dimensions Mask = Rectangular Style
$CDMDM0000F420
$CDMDM3FFFFFFF
Data Matrix Dimensions Mask = Both Square and
Rectangular Style
To Next Page
