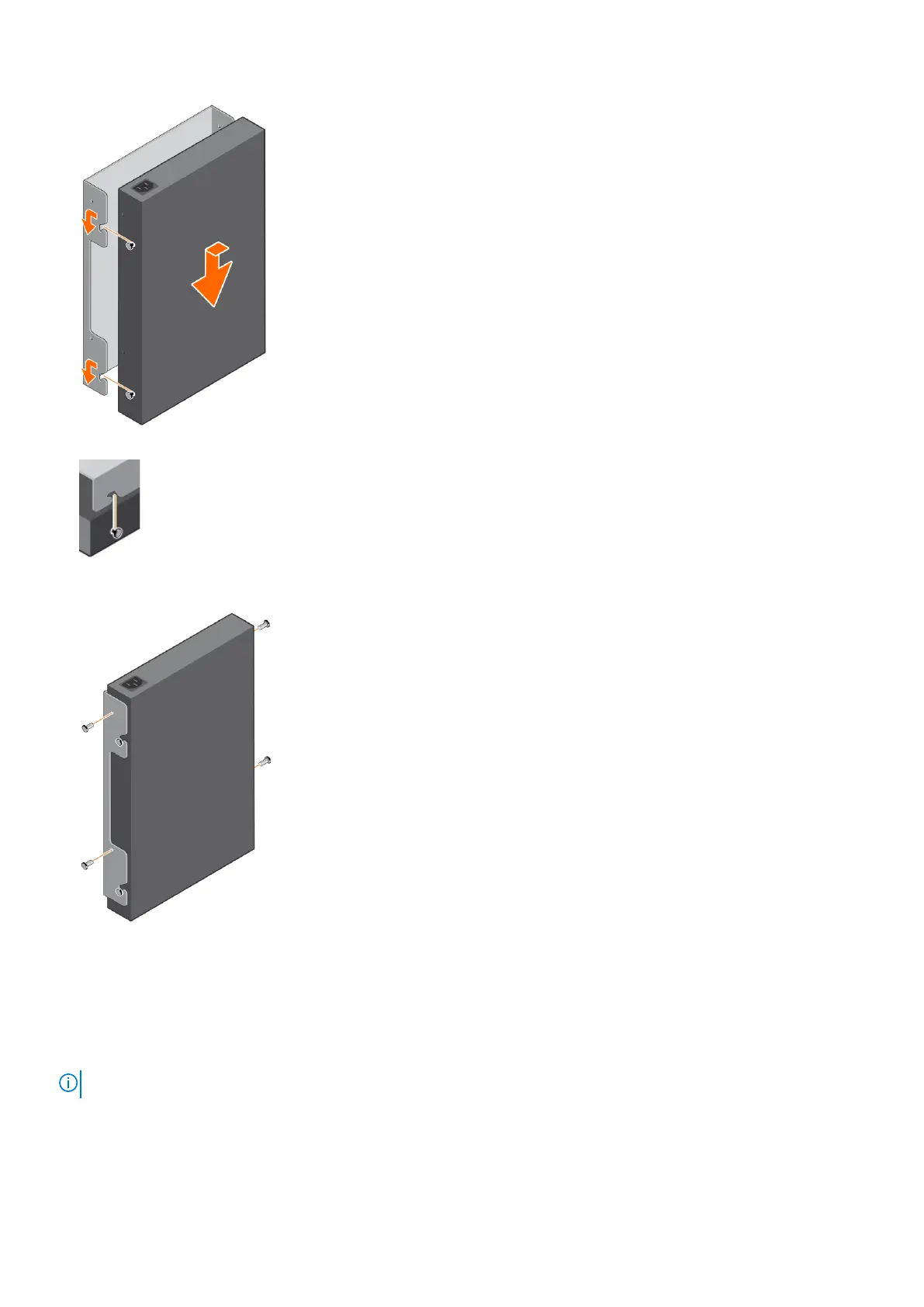

7. Line up the two mushroom-heads on the switch to the wall mount tray hook cutouts until the switch locks into place.
8. Fix the switch to the wall mount tray using two screws on each side.
To uninstall the switch, unscrew the four wall mount tray screws and slide the switch from the mushroom head hooks.
DIN buckle rail installation
Use the DIN buckle with wall- or ceiling-mount installations. This switch installation procedure applies to the compact N3208PX-
ON switch only.
NOTE: Do not use this installation procedure for the full-width N3200-ON Series switches.
This installation requires both the DIN rail mount kit and the wall- or ceiling-mount tray and screws. The wall- and ceiling- mount
tray and screws ship with the switch. You must order the DIN rail mount kit separately.
1. Remove the two DIN buckles, wall- or ceiling-mount tray, and screws from the shipping box.
DIN buckles
N3200-ON Series switch installation
29
