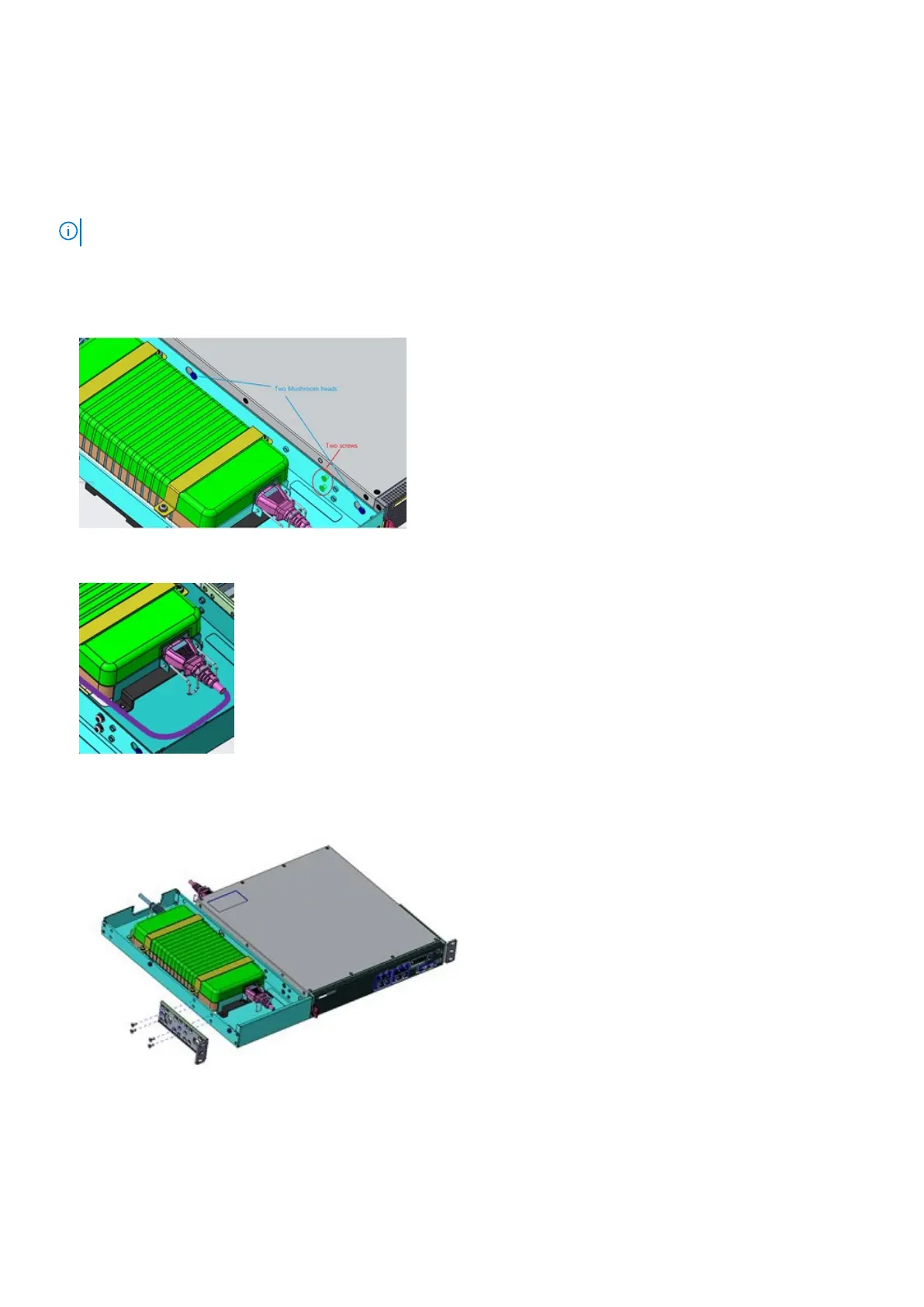

Single-EPA and switch two-post front-mount
installation
To install a single EPA power adapter holder on the side of your switch in a front-mount two-post rack:
NOTE: This installation instruction procedure applies to the N3208PX-ON switch only.
1. Install the single EPA in the power adapter holder using the instructions in Power adapter holder assembly.
2. Align the two mushroom heads on the switch with the two holes on the power adapter holder. Slide the power adapter
holder forward to lock it in place.
3. Use two screws to secure the power adapter holder to the side of the switch.
4. Install the AC power cable to the EPA and secure with the wire clip.
5. Bend the AC power cable 180 degrees along the holder wall and through the cable cutout.
6. Align the L-bracket with mushroom head on the switch and the power adapter holder.
Face the L-bracket flange towards the rear of the assembly.
7. Secure the L-brackets to the switch and the power adapter holder using four screws on each side.
8. Install the L-bracket to the two-post rack, and secure it with the rack-mounting screws.
External power adapter
49
