DIN rail installation
To install an external power adapter to DIN rails:
NOTE: This installation instruction procedure applies to the external power adapter only.
You must order the mounting supplies for this installation separately.

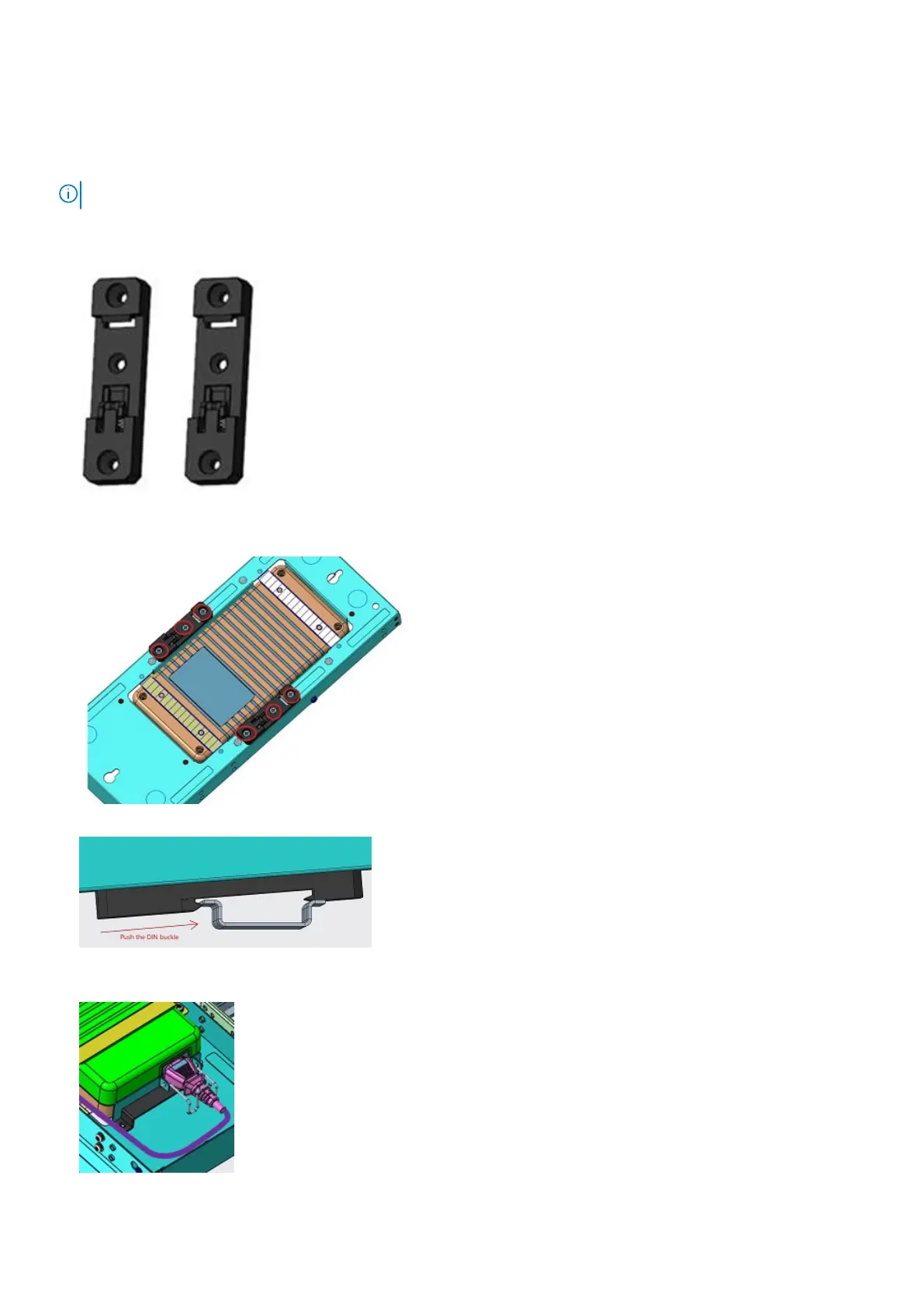

1. Remove the two DIN buckles and screws from the shipping box.
2. Install the EPA in the power adapter holder using Steps 1 through 3 in the Power adapter holder assembly section.
3. Fix the two DIN buckles to the bottom side of the EPA power adapter assembly using three screws for each DIN rail.
4. Snap the two DIN buckles into the DIN rails.
5. Install the AC power cable to the EPA and secure with the wire clip.
6. Bend the AC power cable 180 degrees along the holder wall and through the cable cutout.
