One RU ReadyRails installation
Install the N3200-ON Series switch, excluding the N3208PX-ON switch, using one of the following installation instructions.
You can install the ReadyRails system using the 1U tool-less square-hole method or one of three possible 1U threaded round-hole
methods. The tooled installation methods include two-post flush mount, two-post center mount, or four-post threaded mount.
NOTE: You must order the ReadyRails mounting supplies for this installation separately.
To begin installation, separate each rail assembly by sliding the inside rail out of the outside rail.
NOTE: For more installation instructions, see the installation labels attached to the rail assembly.

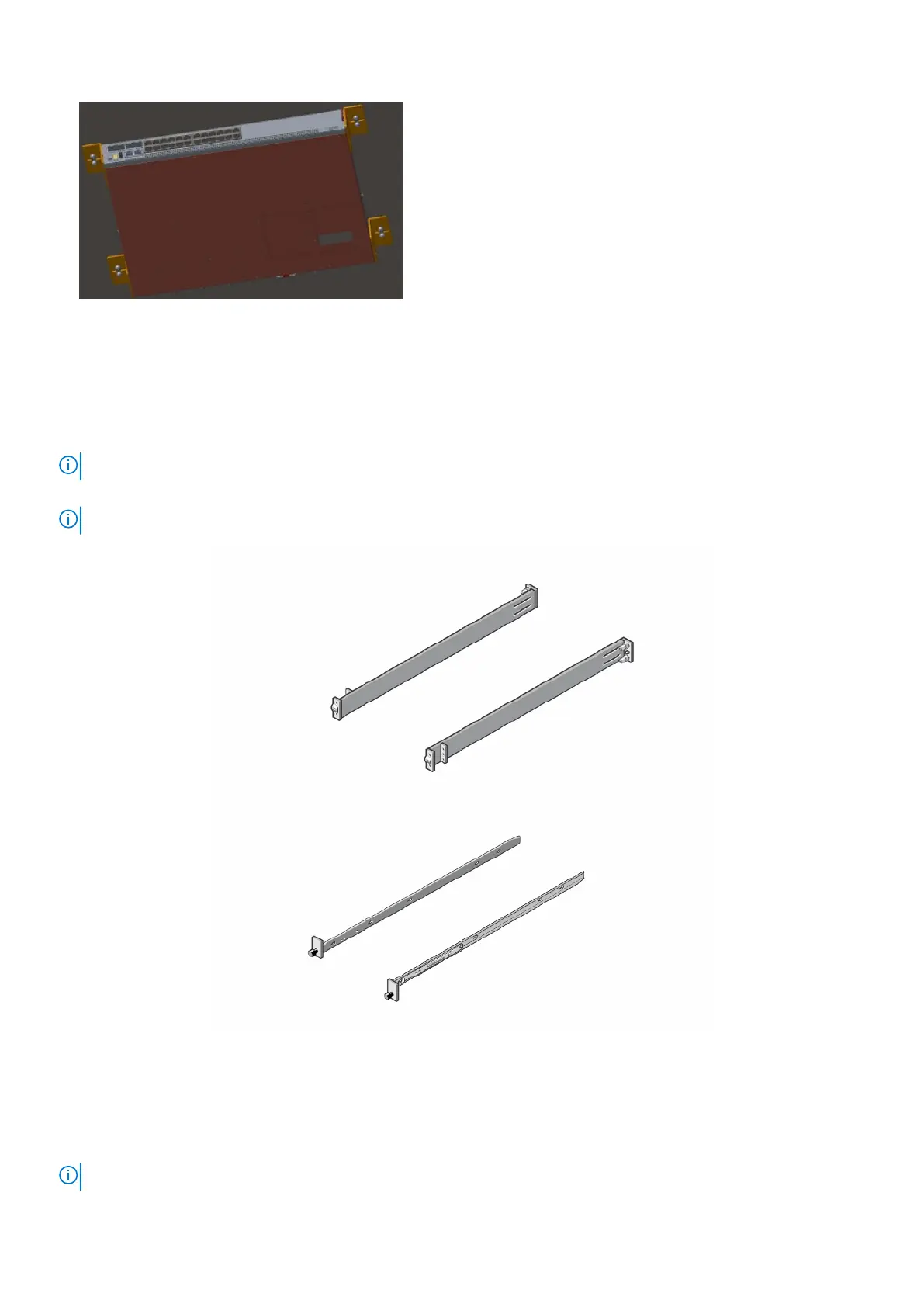

Figure 2. Separate rails
1U Tool-less mount ReadyRails installation
This switch installation procedure is for the full-width N3200-ON Series switches only.
NOTE: Do not use this installation procedure for the compact N3208PX-ON switch.
36 N3200-ON Series switch installation
