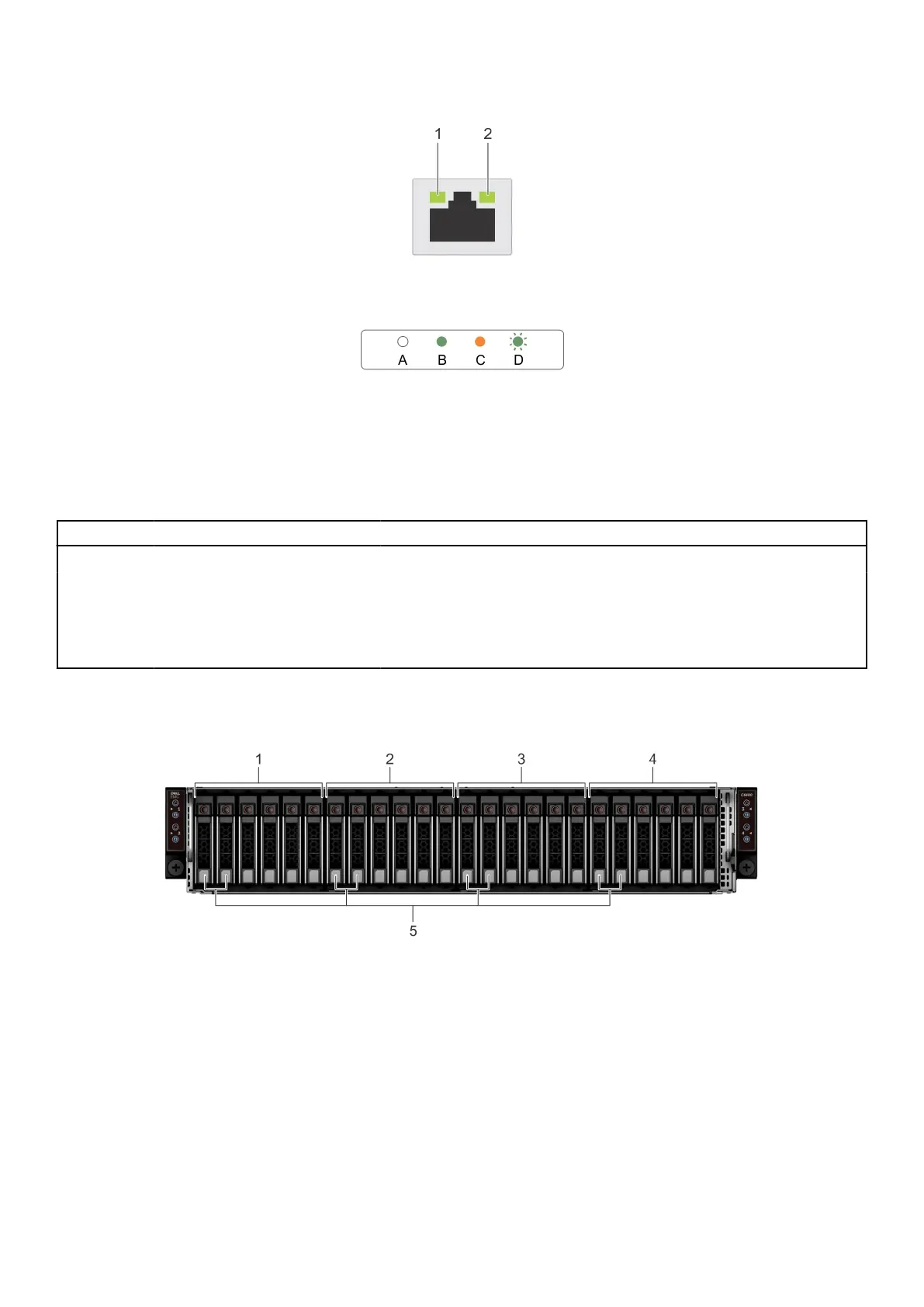

Figure 4. Ethernet port indicator codes
1. Speed indicator
2. Link and activity indicator
Table 3. Ethernet port indicator codes
Convention Status Condition
A Link and activity indicators are off The NIC is not connected to the network.
B Link indicator is green The NIC is connected to a valid network at its maximum port speed.
C Link indicator is amber The NIC is connected to a valid network at less than its maximum port
speed.
D Activity indicator is flashing green Network data is being sent or received.
Sled to hard drive mapping
Figure 5. Sled to drive mapping for 24 x 2.5-inch drive configuration
1.
Drives 0–5 mapped to sled 1 2. Drives 6–11 mapped to sled 2
3. Drives 12–17 mapped to sled 3 4. Drives 18–23 mapped to sled 4
5. (Optional) NVMe hard drive location
10 Dell EMC PowerEdge C6520 system overview
