Dell EMC PowerEdge C6520 User Manual

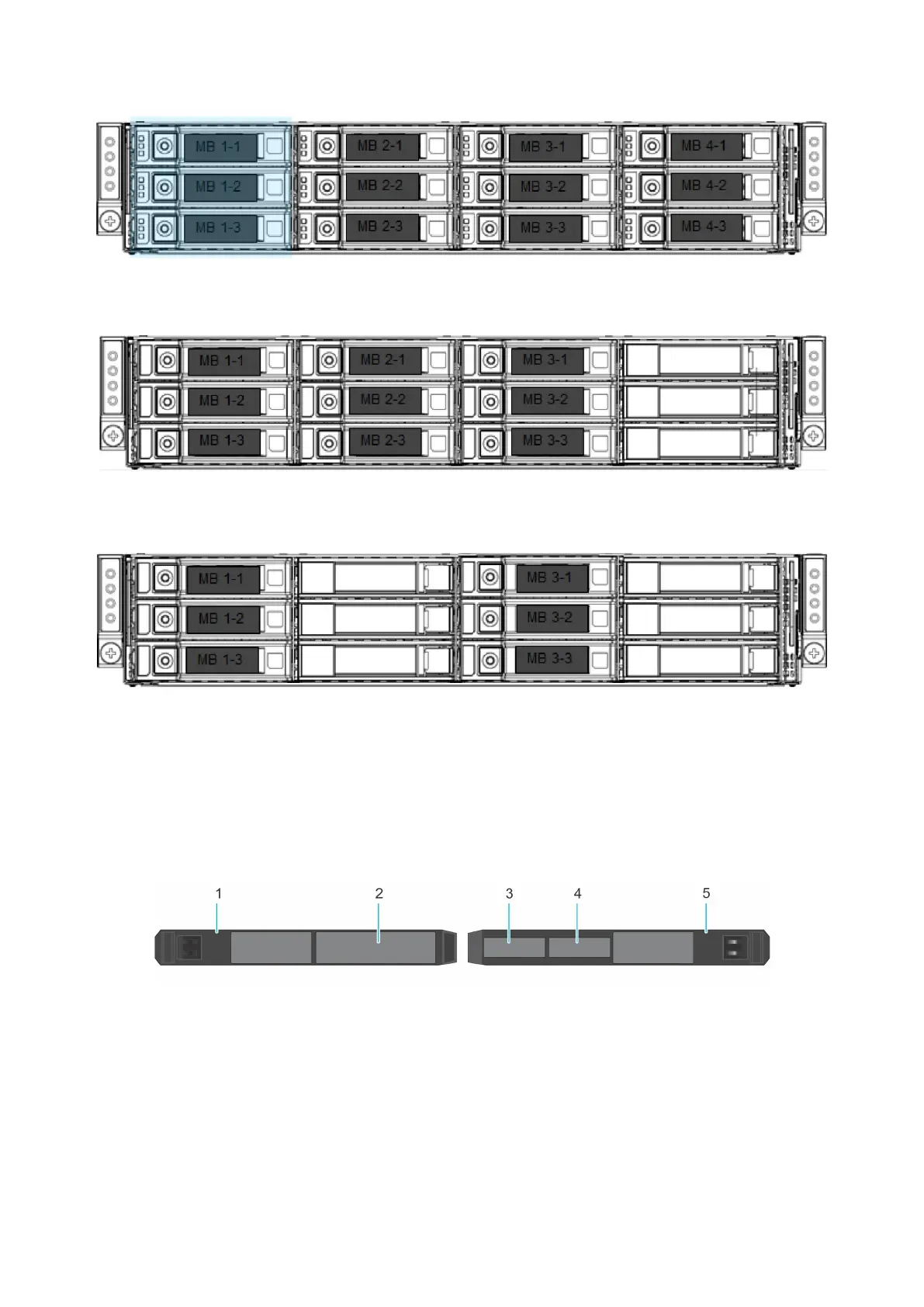

Figure 19. 3.5-inch drives (12) with four 1U sleds
Figure 20. 3.5-inch drives (12) with three 1U sleds
Figure 21. 3.5-inch drives (12) with two 1U sleds
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the rear of the system that includes system information such as Service Tag, Express Service
Code, Manufacture date, NIC, MAC address, QRL label, and so on.
Figure 22. Locating the Service Tag of your system
1. Information tag (top view)
2. Express Service Tag label
3. Network MAC address information label
4. iDRAC MAC address information label
5. Information tag (bottom view)
The Mini Enterprise Service Tag (MEST) label is located on the rear of the system that includes Service Tag (ST), Express
Service Code (Exp Svc Code), and Manufacture Date (Mfg. Date). The Exp Svc Code is used by Dell EMC to route support calls
to the appropriate personnel.
Dell EMC PowerEdge C6520 system overview
15
