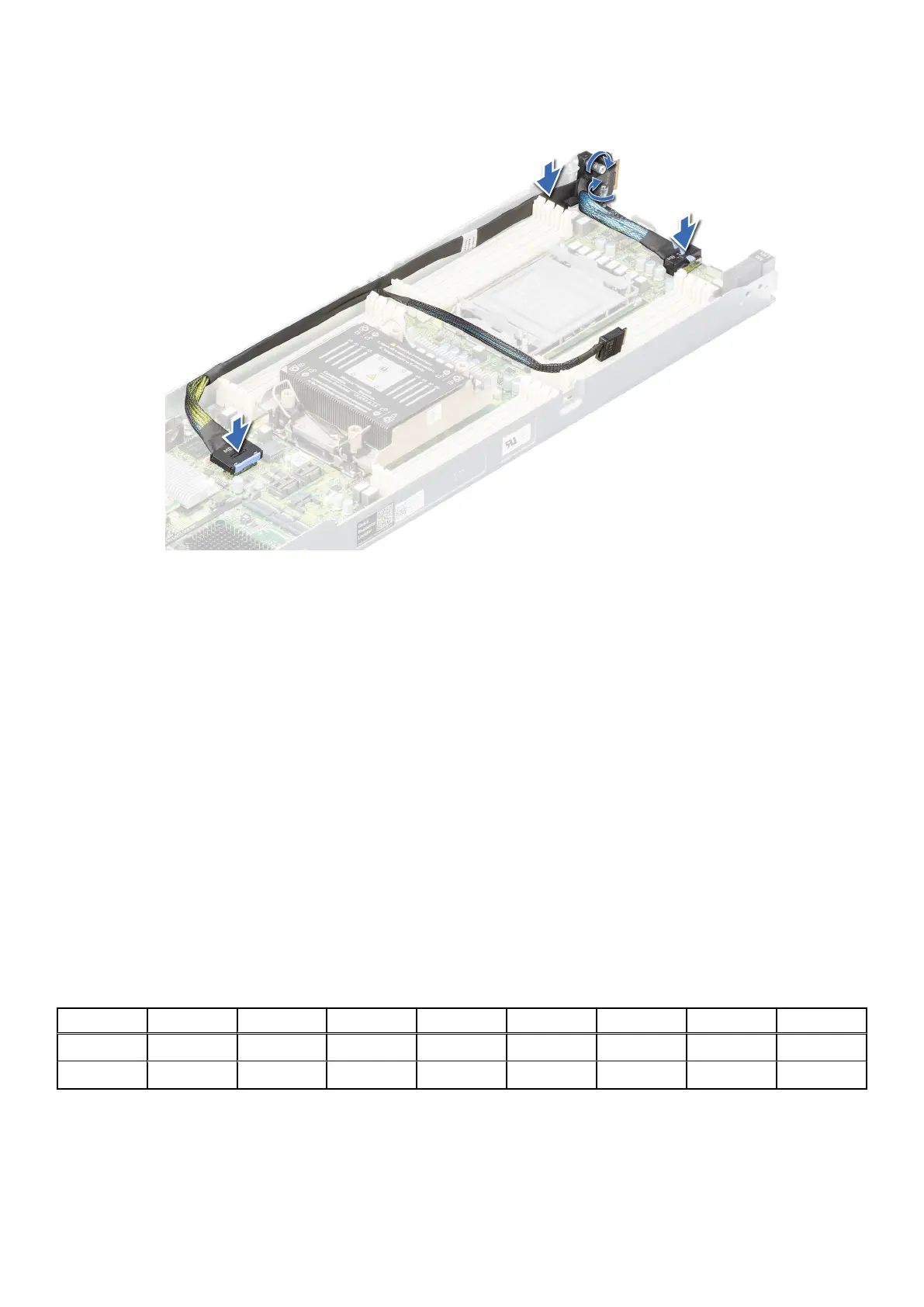

Figure 61. Installing the linking board and PCIe cable
4. If applicable, connect the M.2 riser data cable to the M.2 riser.
Next steps
1. Install the expansion card riser 1.
2. Install the support bracket.
3. Install the air shroud.
4. Follow the procedure listed in After working inside your system.
System memory
System memory guidelines
The PowerEdge C6520 system supports DDR4 registered DIMMs (RDIMMs), load reduced DIMMs (LRDIMMs). System memory
holds the instructions that are executed by the processor.
Your system contains 16 memory sockets organized into 8 channels per processor.
Memory channels are organized as follows:
Table 13. Memory channels
Processor Channel A Channel B Channel C Channel D Channel E Channel F Channel G Channel H
Processor 1 A1 A5 A3 A7 A2 A6 A4 A8
Processor 2 B1 B5 B3 B7 B2 B6 B4 B8
56 Installing and removing system components
