Installing the processor into a processor and heat sink module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Place the processor in the processor tray.
NOTE: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on the processor.
2. Place the processor retaining clip on top of the processor that is in the processor tray aligning pin 1 indicator on the
processor.
NOTE: Ensure that the pin 1 indicator on the retaining clip is aligned with the pin 1 indicator on the processor before
placing the retaining clip on the processor.
NOTE: Ensure that the processor and the retaining clip are placed in the tray before you install the heat sink.

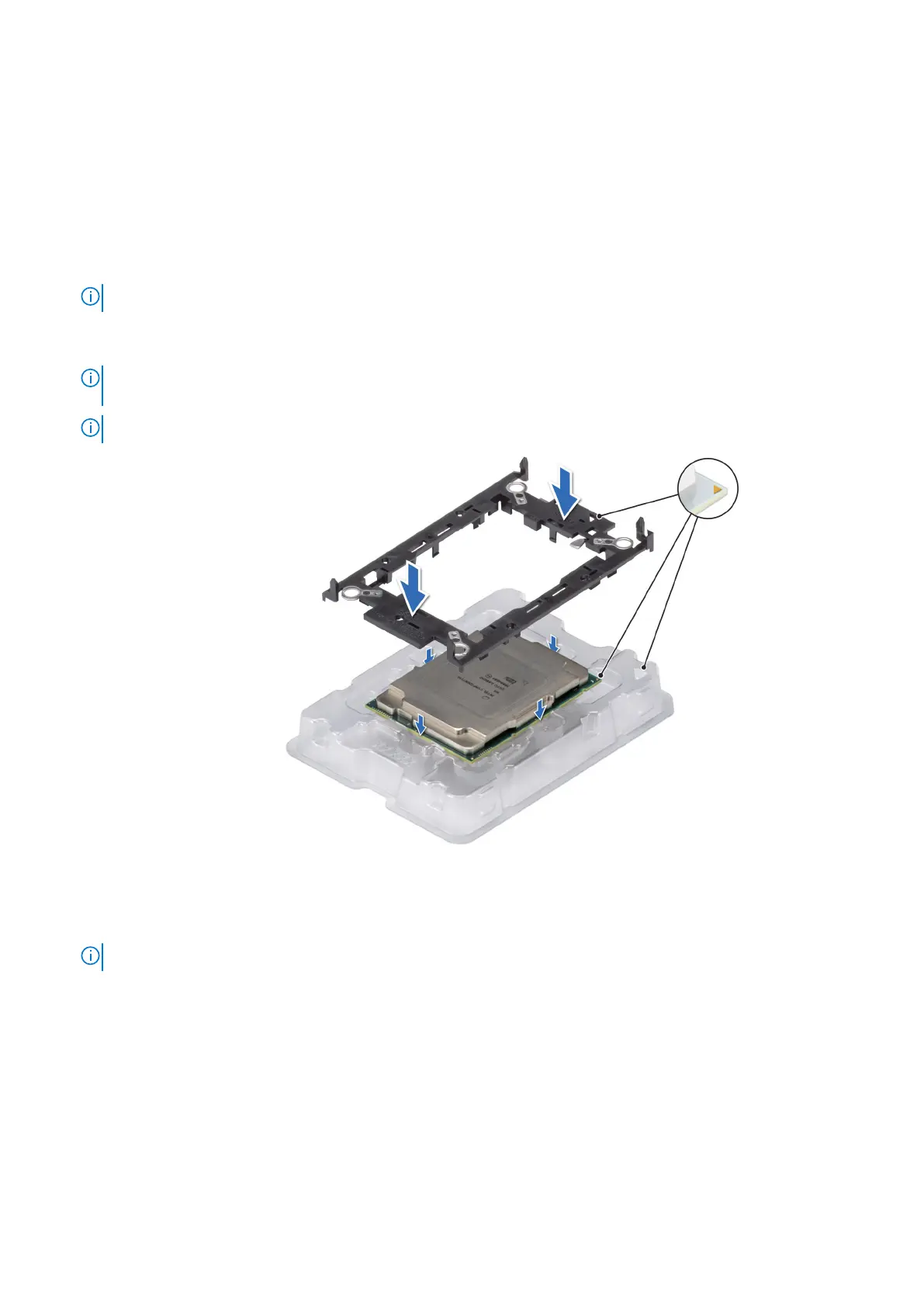

Figure 70. Installing the processor retaining clip
3. Align the processor with processor retaining clip by using your fingers to press the retaining clip on all the four sides until it
clicks into place.
NOTE: Ensure that the processor is securely latched to the processor retaining clip.
64 Installing and removing system components
