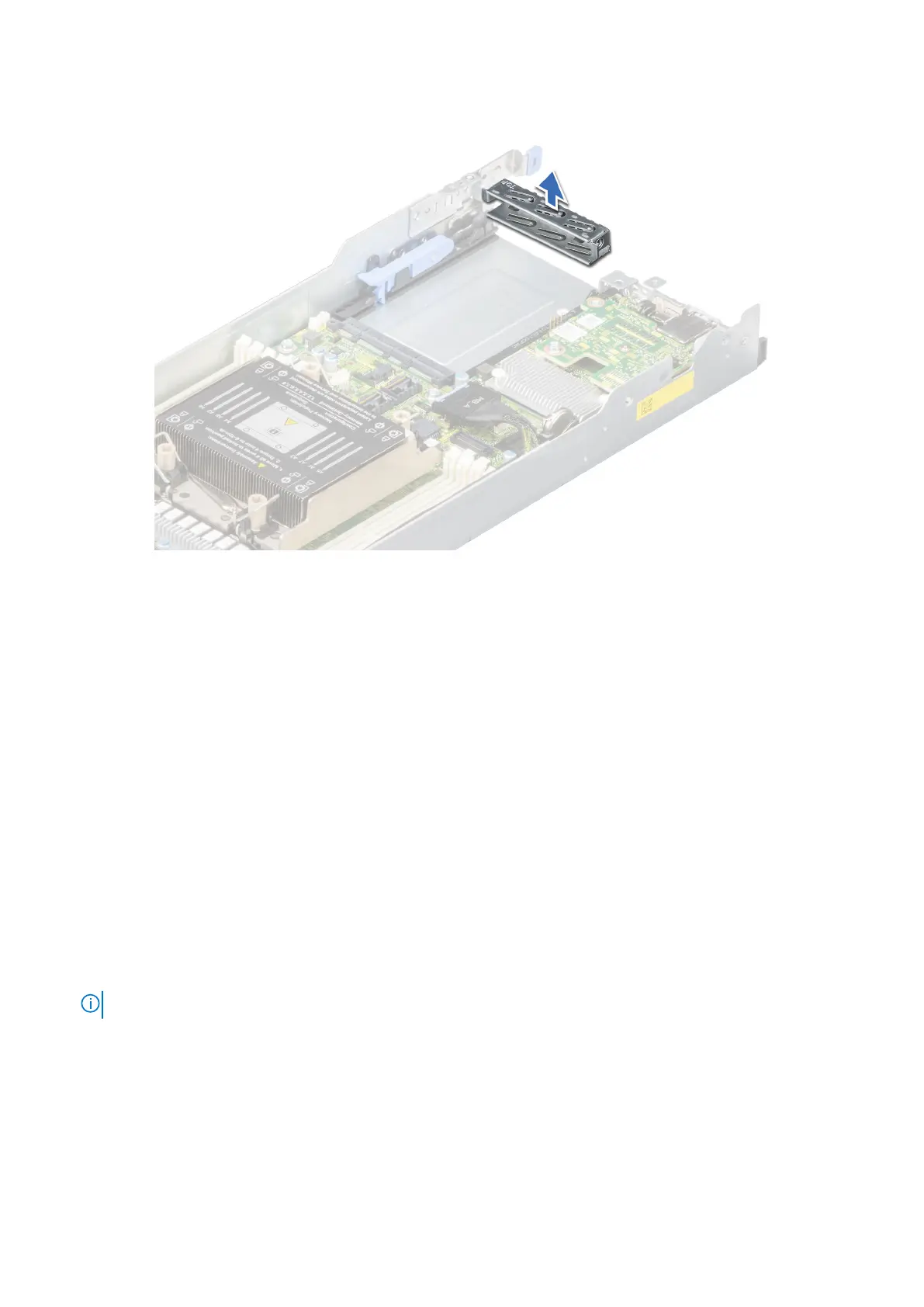

Figure 77. Removing the OCP card filler
Next steps
1. Install the OCP card.
2. Install the expansion card riser 2.
3. Install the expansion card riser 1.
Installing an OCP card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 1.
4. Remove the expansion card riser 2.
5. Remove the OCP filler.
Steps
1. Align and insert the OCP card into the sled. Slide the OCP card and push firmly until it is fully connected to the system board
connector.
NOTE: Ensure to lift the OCP card retention latch if it is in the lock position.
2. Close the OCP card retention latch to secure the card in place.
70
Installing and removing system components
To Next Page
