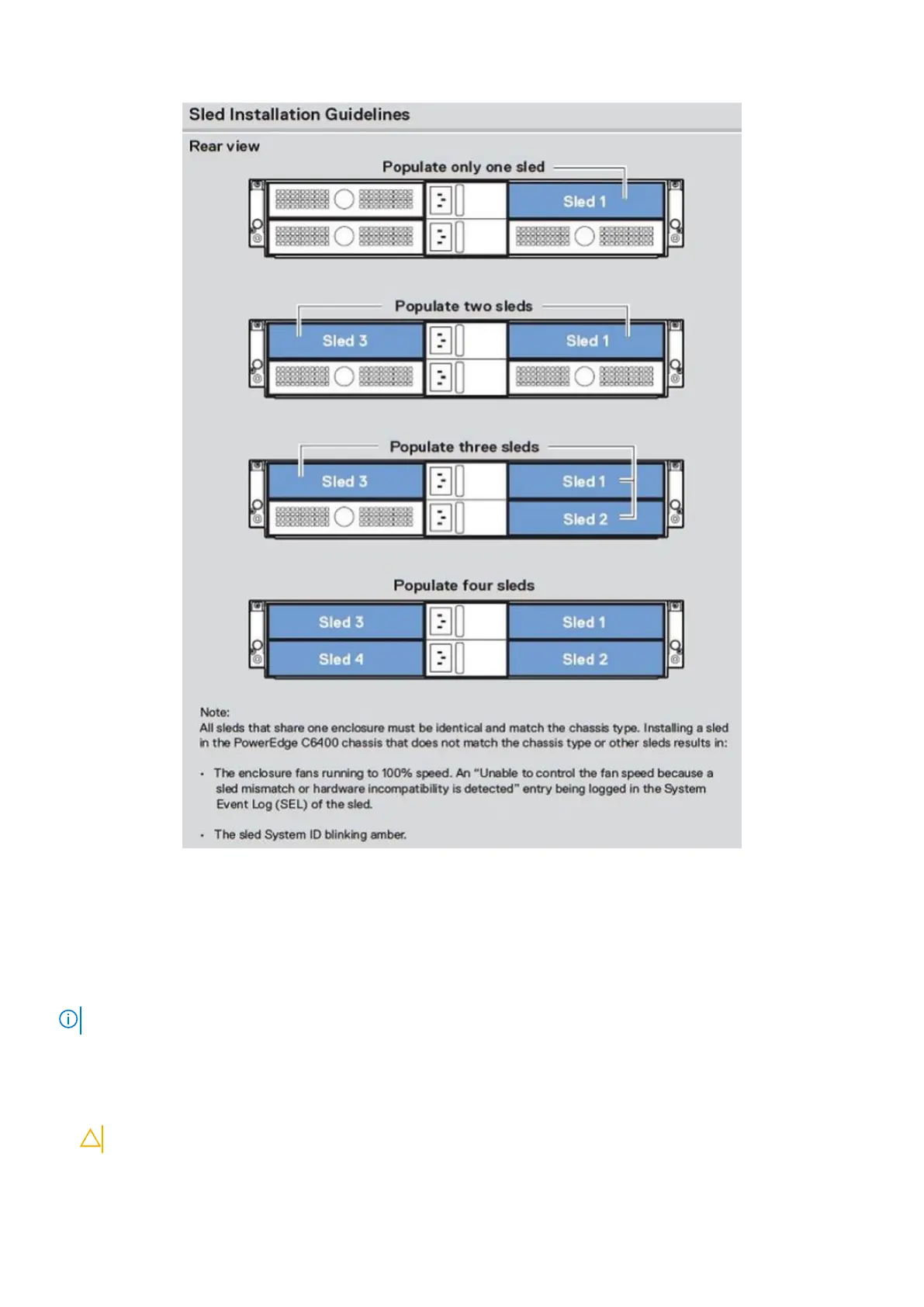

Figure 27. Sled Installation Guidelines
Removing a sled
Prerequisites
Follow the safety guidelines listed in Safety Instructions.
NOTE: The procedure to remove a sled blank or a sled is similar.
Steps
1. Holding the sled handle, press the retention latch on the sled to release the sled.
2. Slide the sled out of the enclosure.
CAUTION: Support the system with both hands while sliding it out of the enclosure.
Installing and removing system components 25
