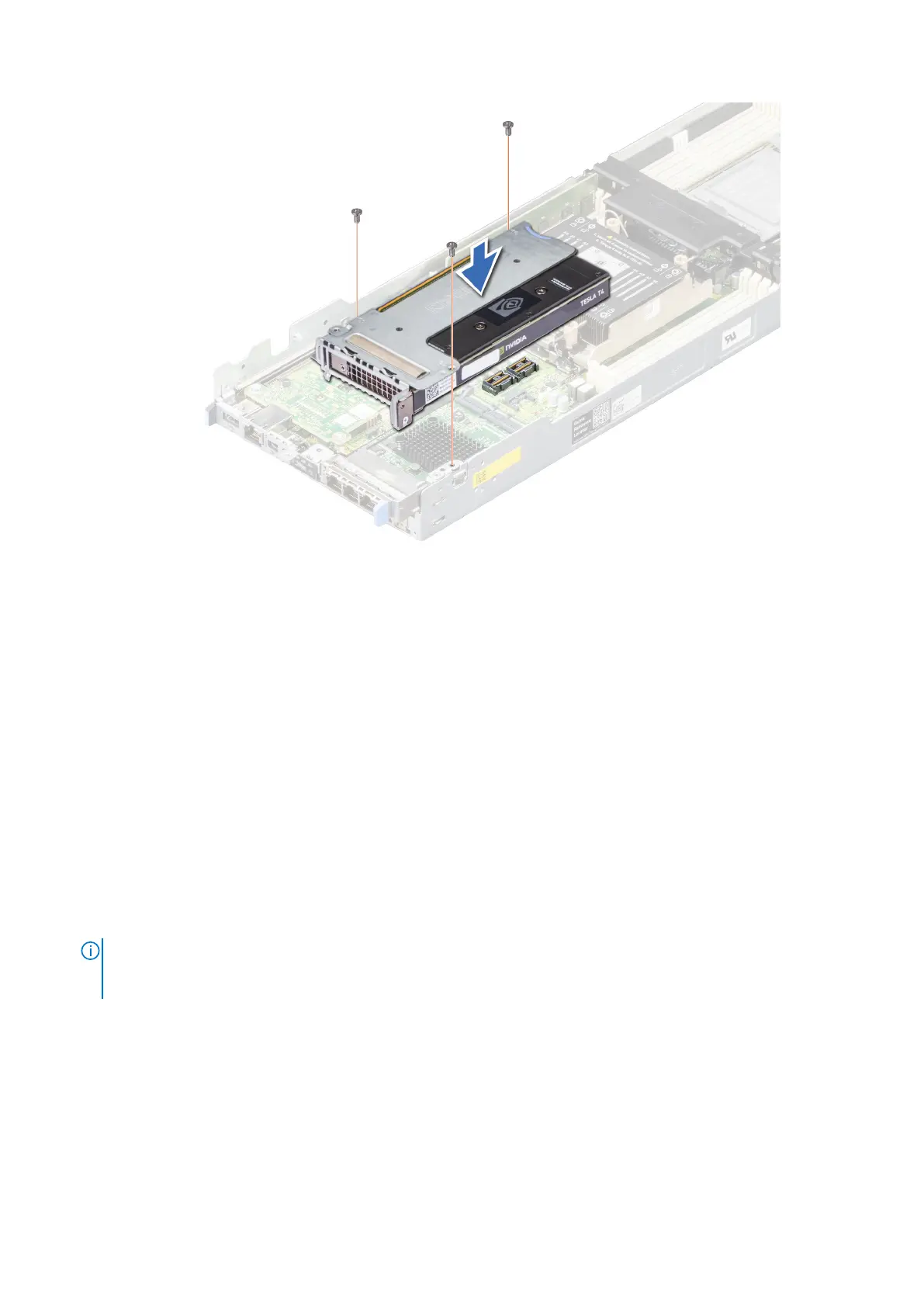

Figure 41. Installing the expansion card riser 2
Next steps
1. Install the expansion card riser 1.
2. Follow the procedure listed in After working inside your system.
Removing an expansion cards
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 1a or 1b and Remove the expansion card riser 2.
Steps
1. Using a Phillips #2 screwdriver, remove the screw that secures the expansion card to the riser.
2. Holding the expansion card by its edges, remove it from the riser slots.
NOTE:
Install an expansion card filler bracket over an empty expansion slot to maintain Federal Communications
Commission (FCC) certification of the system. The brackets also keep dust and dirt out of the system and aid in proper
cooling and airflow inside the system.
40 Installing and removing system components
