Dell EMC PowerEdge C6520 User Manual

NOTE: For more information, see the Dell EMC PowerEdge C6520 Technical Specifications on the product documentation
page.
Network ports indicator codes

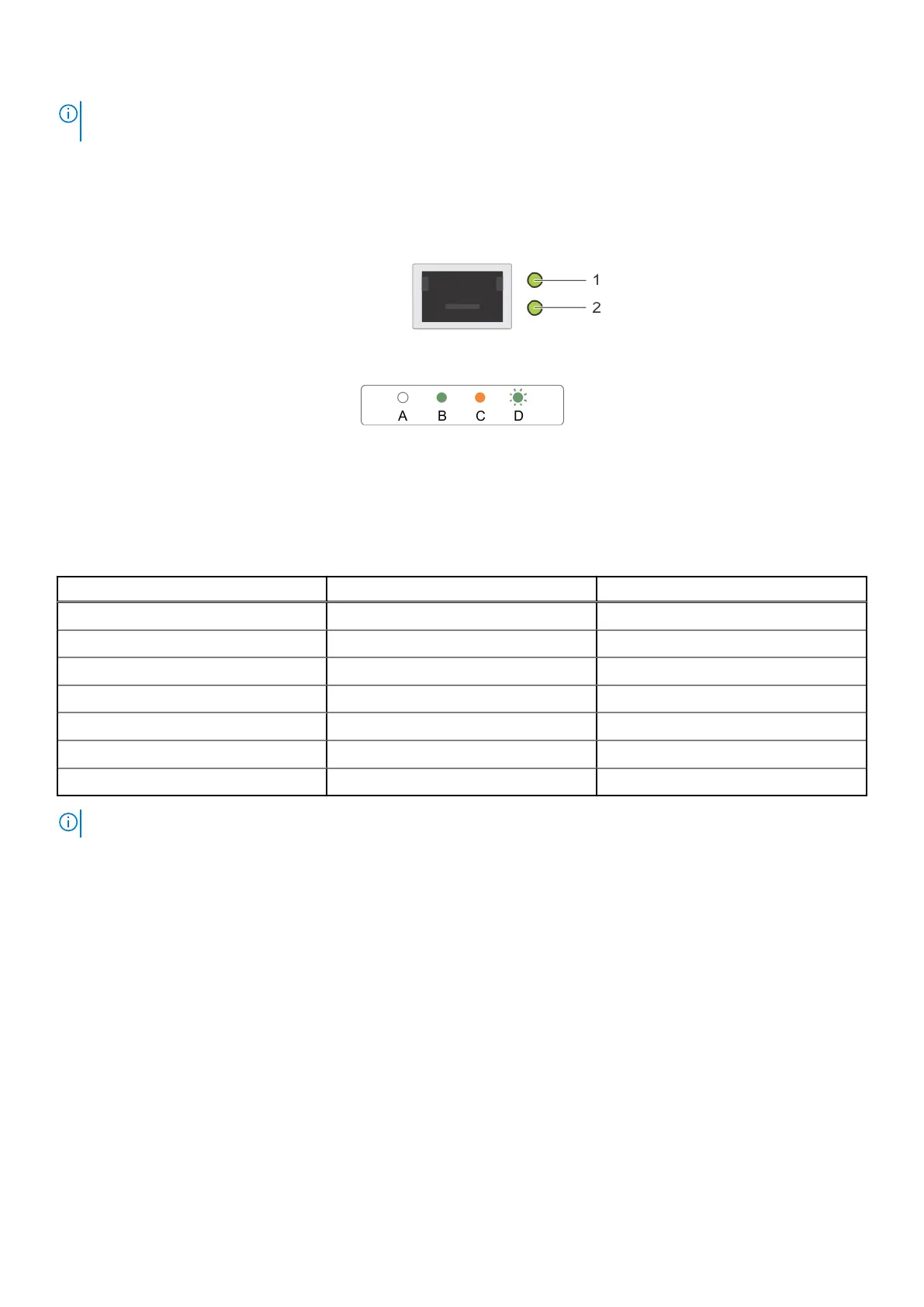

Figure 3. LAN indicators on the QSFP OCP card
1. Link indicator
2. Activity indicator
Table 2. QSFP port on OCP card indicator codes
Connection State QSFP Upper green LED QSFP Lower green LED
No link/Not Connected Off Off
InfiniBand Physical Link - No Logical Link Green Off
InfiniBand Logical Link - No Traffic Green Green
InfiniBand Logical Link - Traffic Green Blink
InfiniBand Physical Link Issue Blink Green
Ethernet Link - No Traffic Green Green
Ethernet - Traffic Green Blink
NOTE: The LED blink speed varies according to the traffic bandwidth.
Dell EMC PowerEdge C6520 system overview 9
