Steps
1. Connect the SATA cable to the M.2 riser.
2. Align the M.2 riser with the stand off on the system board and insert it firmly until the riser is fully seated in the slot.
3. Using a Phillips #2 screwdriver, tighten the screw that secures the riser to the chassis.

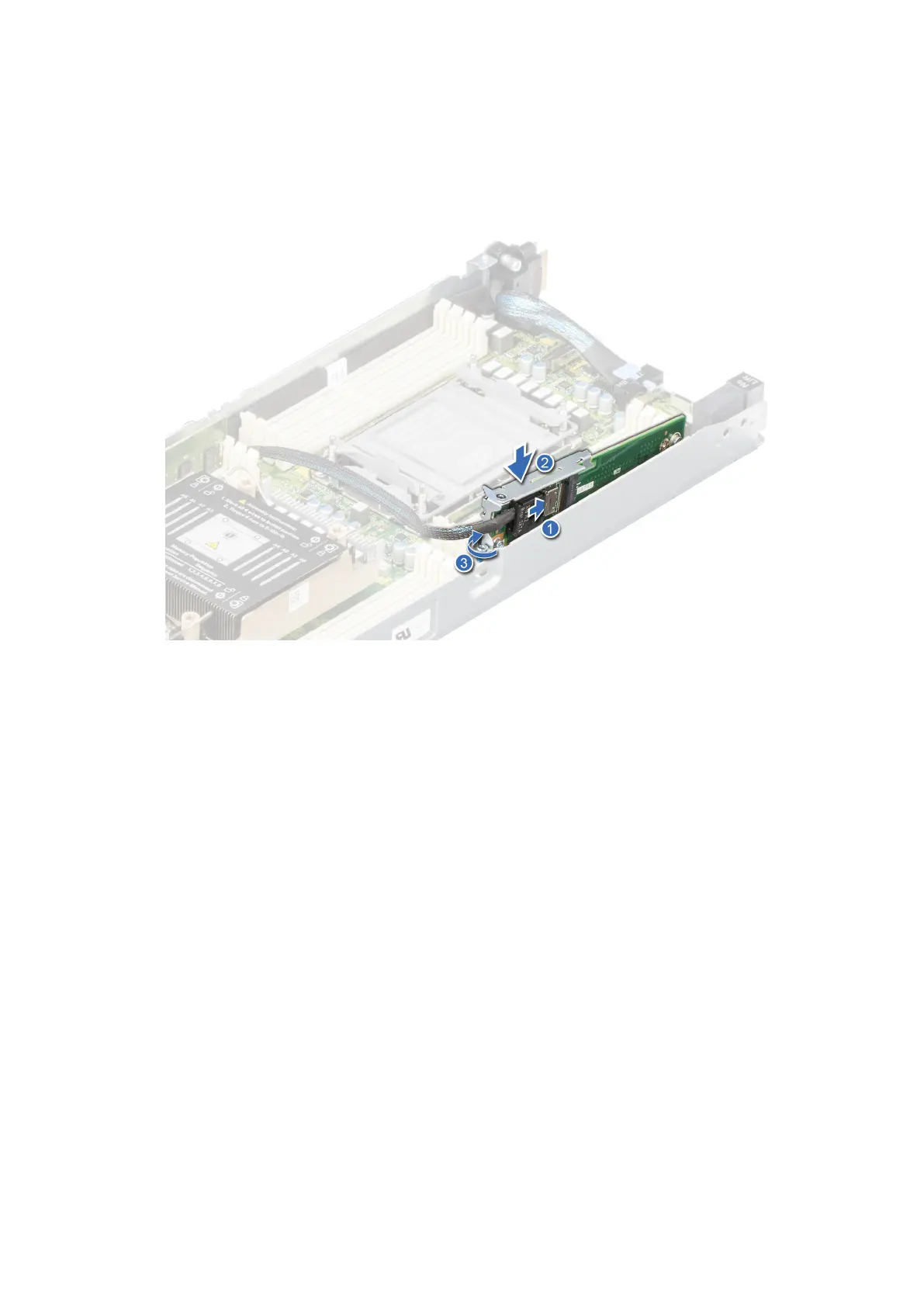

Figure 57. Installing the M.2 riser
Next steps
1. Replace the air shroud.
2. Follow the procedure listed in After working inside your system.
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the M.2 riser.
Steps
1. Using a Phillips #1 screwdriver, remove the screw securing the M.2 SSD module to the M.2 riser.
2. Pull the M.2 SSD module to disconnect from the connector on the M.2 riser.
52
Installing and removing system components
