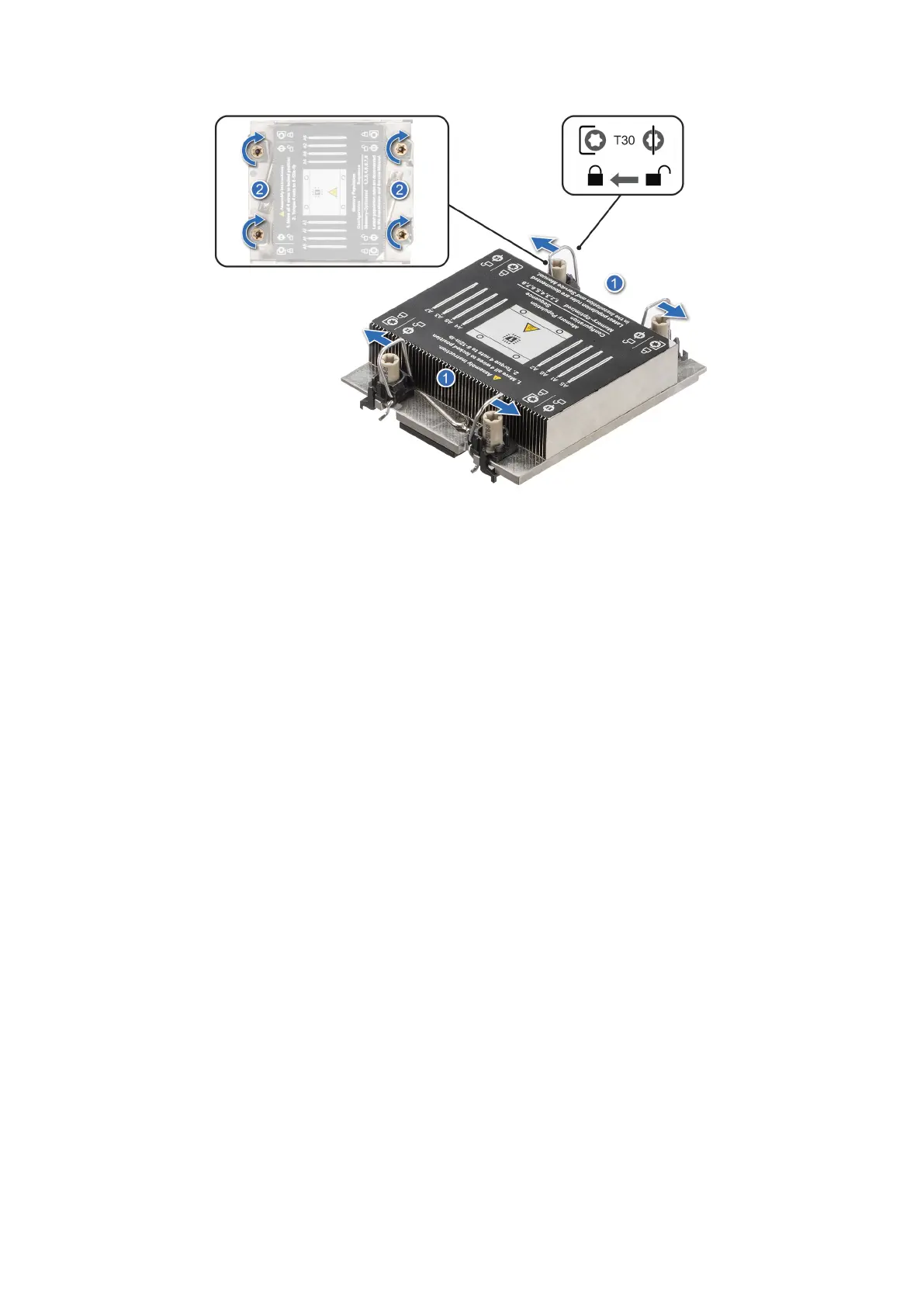

Figure 76. Set the Anti-Tilt wires to the locked position and tightening the screws
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
Optional OCP card
Removing the OCP filler
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 1.
4. Remove the expansion card riser 2.
Steps
Hold and lift the OCP filler from the OCP slot on the chassis.
Installing and removing system components
69
