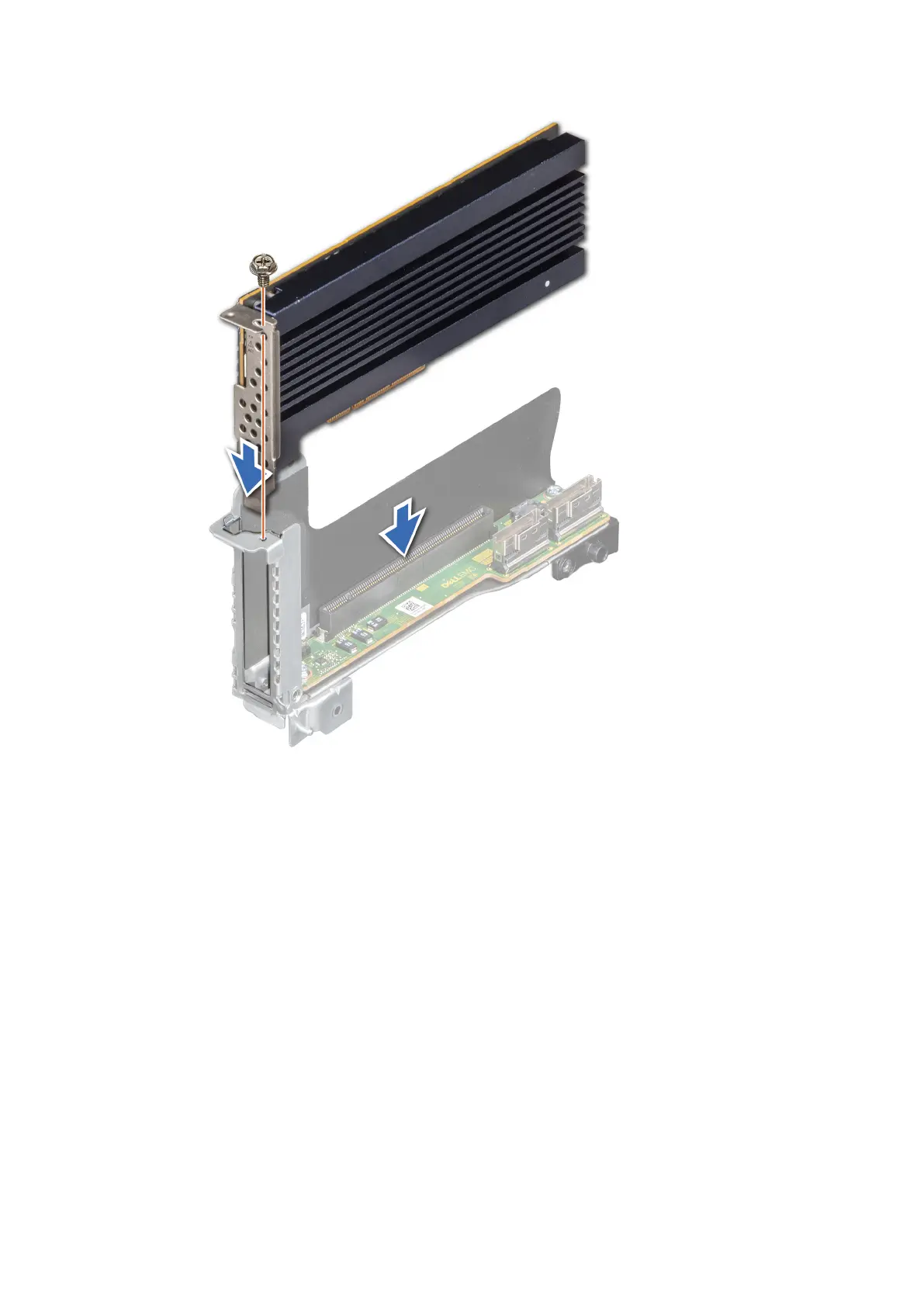

Figure 33. Installing an expansion card in riser 2
Next steps
1. Install the expansion card riser.
2. Follow the procedure listed in After working inside your system.
Removing the riser card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
4. If installed, remove the expansion card.
5. If applicable, disconnect the cable from the riser card.
Steps
1. Using a Phillips #2 screwdriver, remove the screws that secure the riser card to the expansion card riser.
Installing and removing system components
41
