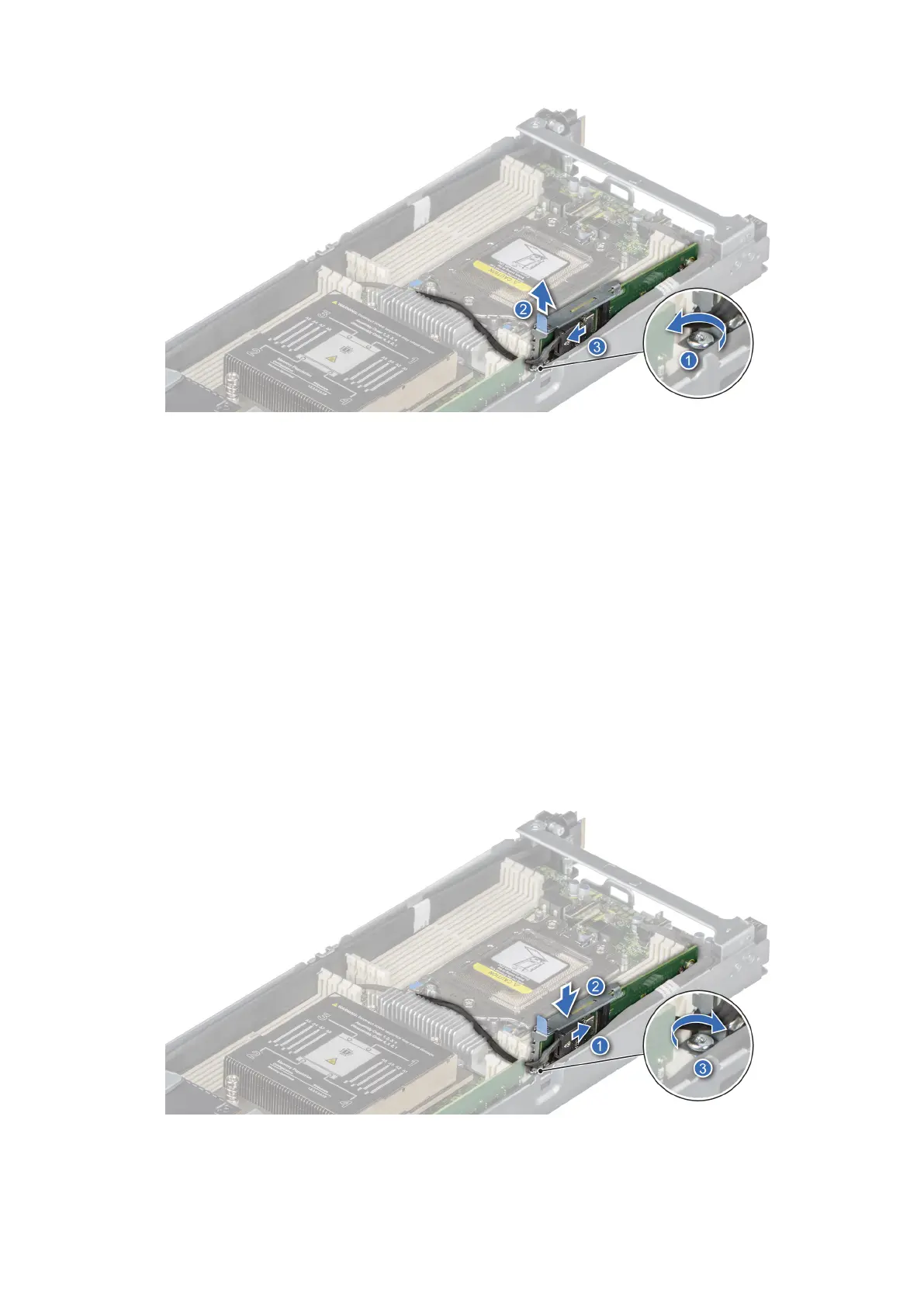

Figure 38. Removing the M.2 riser
Next steps
1. Install the M.2 riser.
Installing the M.2 riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
Steps
1. Connect the data cable to the M.2 riser.
2. Align the M.2 riser with the stand off on the system board and insert it until the card is firmly seated in the slot.
3. Using a Phillips #2 screwdriver, tighten the screw that secures the riser to the chassis.
Figure 39. Installing the M.2 riser
Installing and removing system components
45
