2. Insert the M.2 SSD module until it is firmly seated in the connector on the M.2 riser.

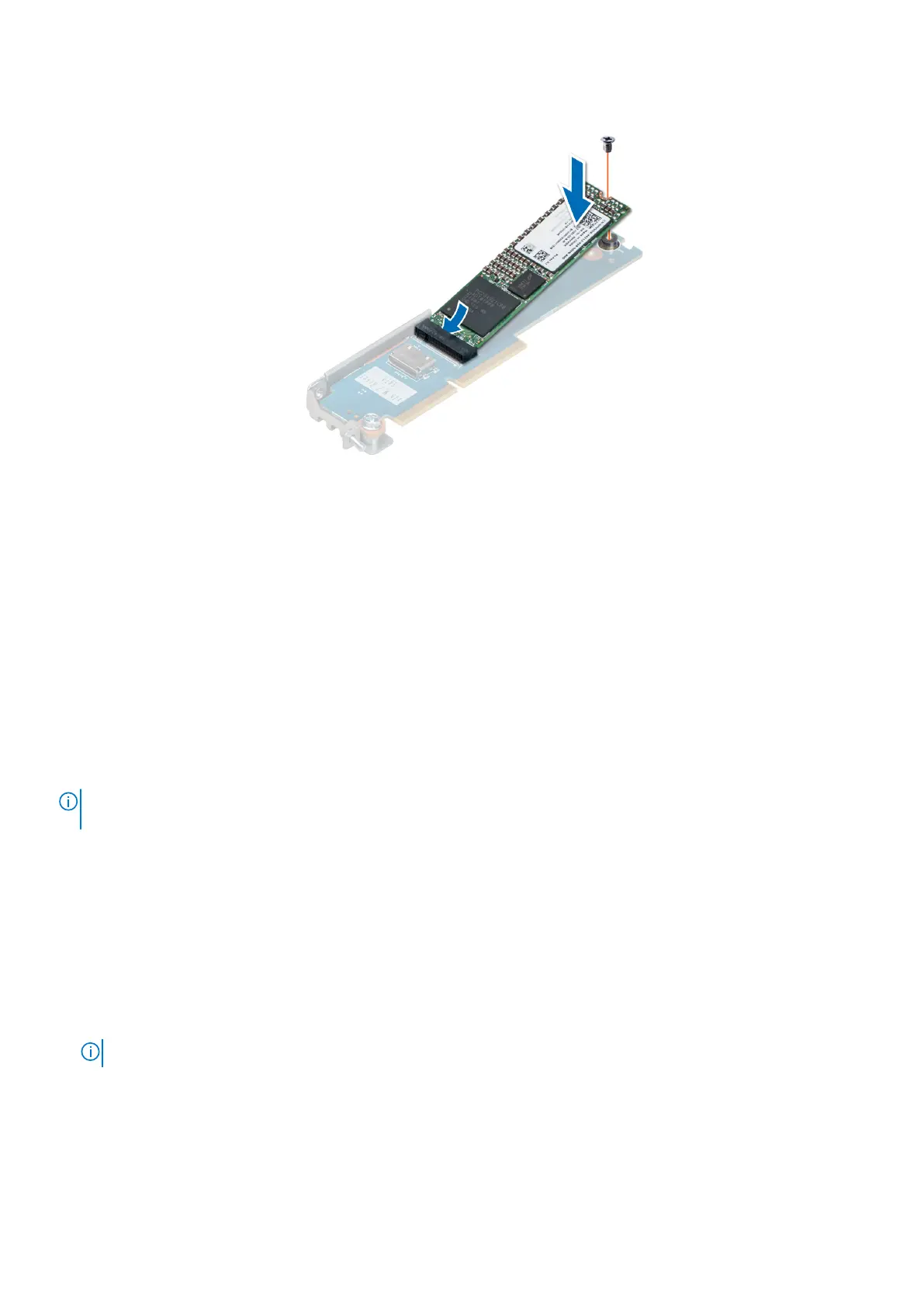

Figure 41. Installing the M.2 SATA card on the M.2 riser
3. Using a Phillips #1 screwdriver, secure the M.2 SSD module on the M.2 riser with the screw.
Next steps
1. Install the M.2 riser.
2. Follow the procedure listed in After working inside your system.
Linking board and PCIe cable
Removing the linking board and PCIe cable
Prerequisites
NOTE:
Observe the routing of the cable as you remove it from the sled. Route the cable properly when you replace it to
prevent the cable from being pinched or crimped.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the support bracket.
5. Remove the expansion riser 1.
Steps
1. To disconnect the MB cable, press the release button on the MB_A cable connector and lift it. See the System board
connector for more information.
2. Remove the MB_B cable.
NOTE: The procedure to remove the MB_B cable is similar to removing the MB_A cable.
3. If applicable, disconnect the M.2 riser data cable from the M.2 riser.
4. Using a Phillips #2 screwdriver, loosen the captive screws that secure the linking board to the chassis.
Installing and removing system components
47
