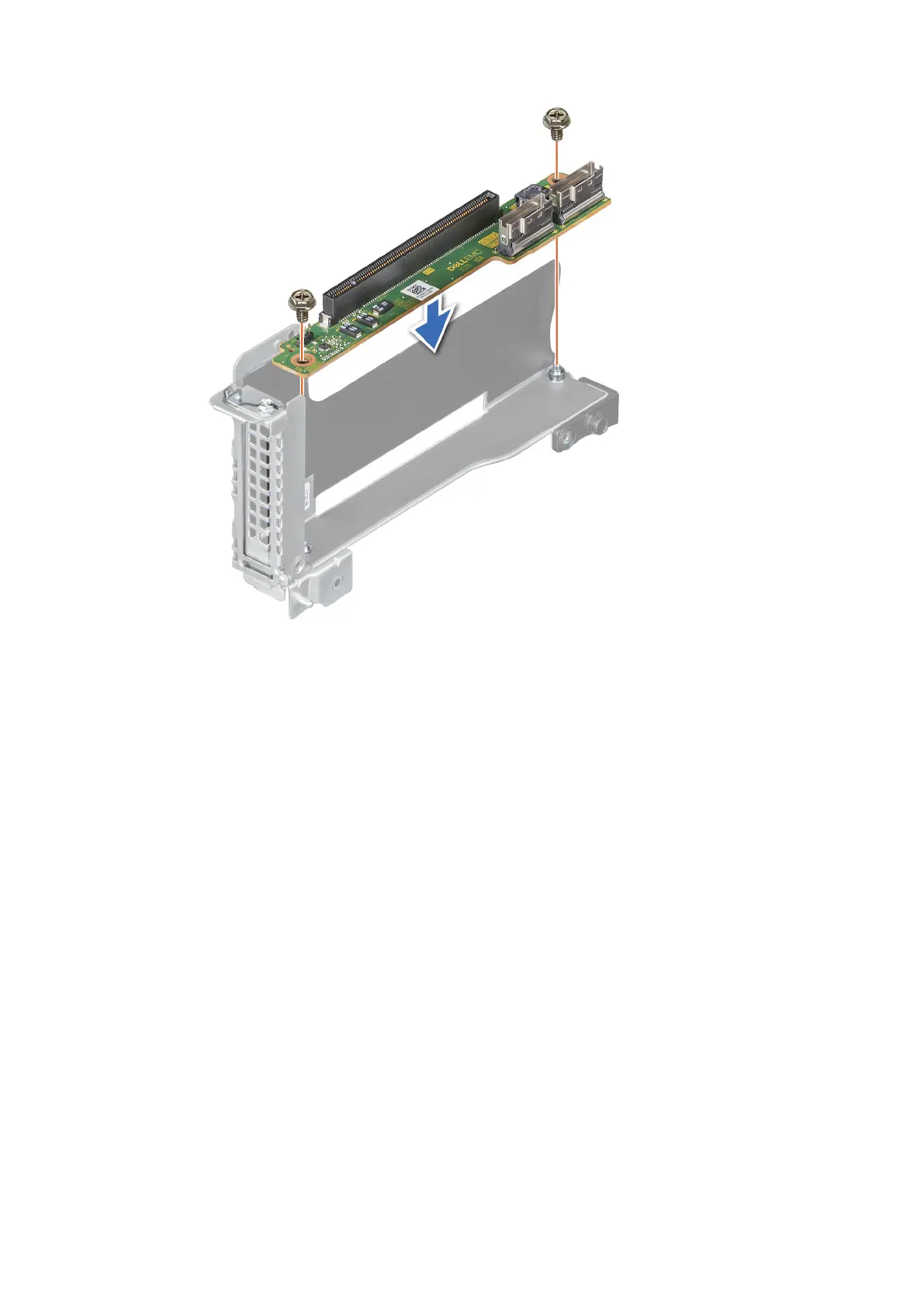

Figure 37. Installing the riser card in riser 2
Next steps
1. If applicable, connect the cable to the riser card.
2. If removed, install the expansion card.
3. Install the expansion card riser.
4. Follow the procedure listed in After working inside your system.
M.2 riser
Removing the M.2 riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
Steps
1. Using a Phillips #2 screwdriver, loosen the screw that secures the riser to the chassis.
2. Lift the riser to disengage the riser from the connector on the system board.
3. Disconnect the data cable from the riser.
44
Installing and removing system components
To Next Page
