Dell EMC PowerEdge C6525 User Manual

Next steps
1. Replace the air shroud.
2. Follow the procedure listed in After working inside your system.
M.2 SSD module
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the M.2 riser.
Steps
1. Using a Phillips #1 screwdriver, remove the screws securing the M.2 SSD module to the M.2 riser.
2. Pull the M.2 SSD module to disconnect from the connector on the M.2 riser.

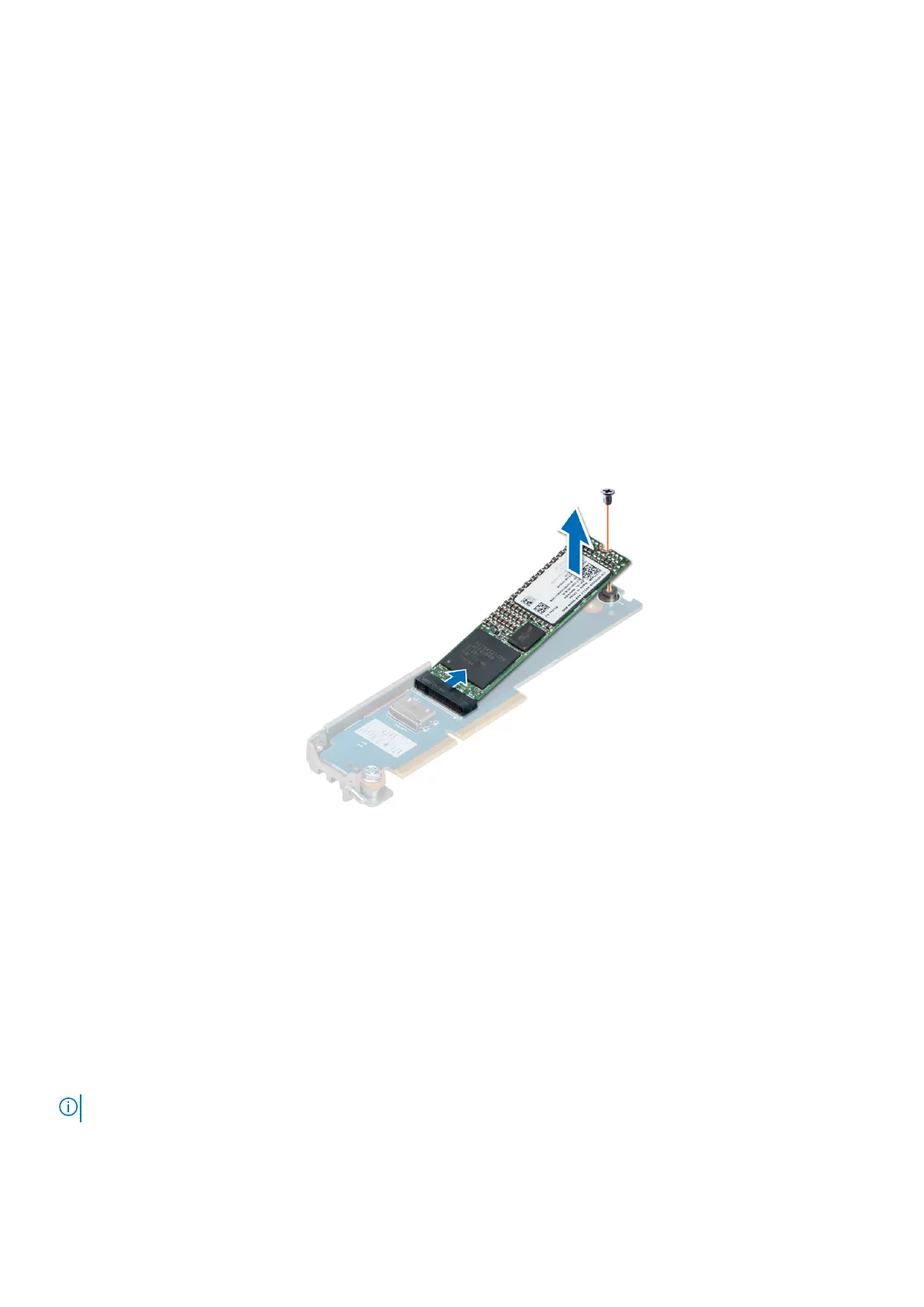

Figure 40. Removing the M.2 SATA card from the M.2 riser
Next steps
1. Install the M.2 SSD module.
.
Installing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE: The procedure to remove the BOSS card is similar to the removing an expansion card.
Steps
1. Align the M.2 SSD module at an angle with the connector on the M.2 riser.
46
Installing and removing system components
