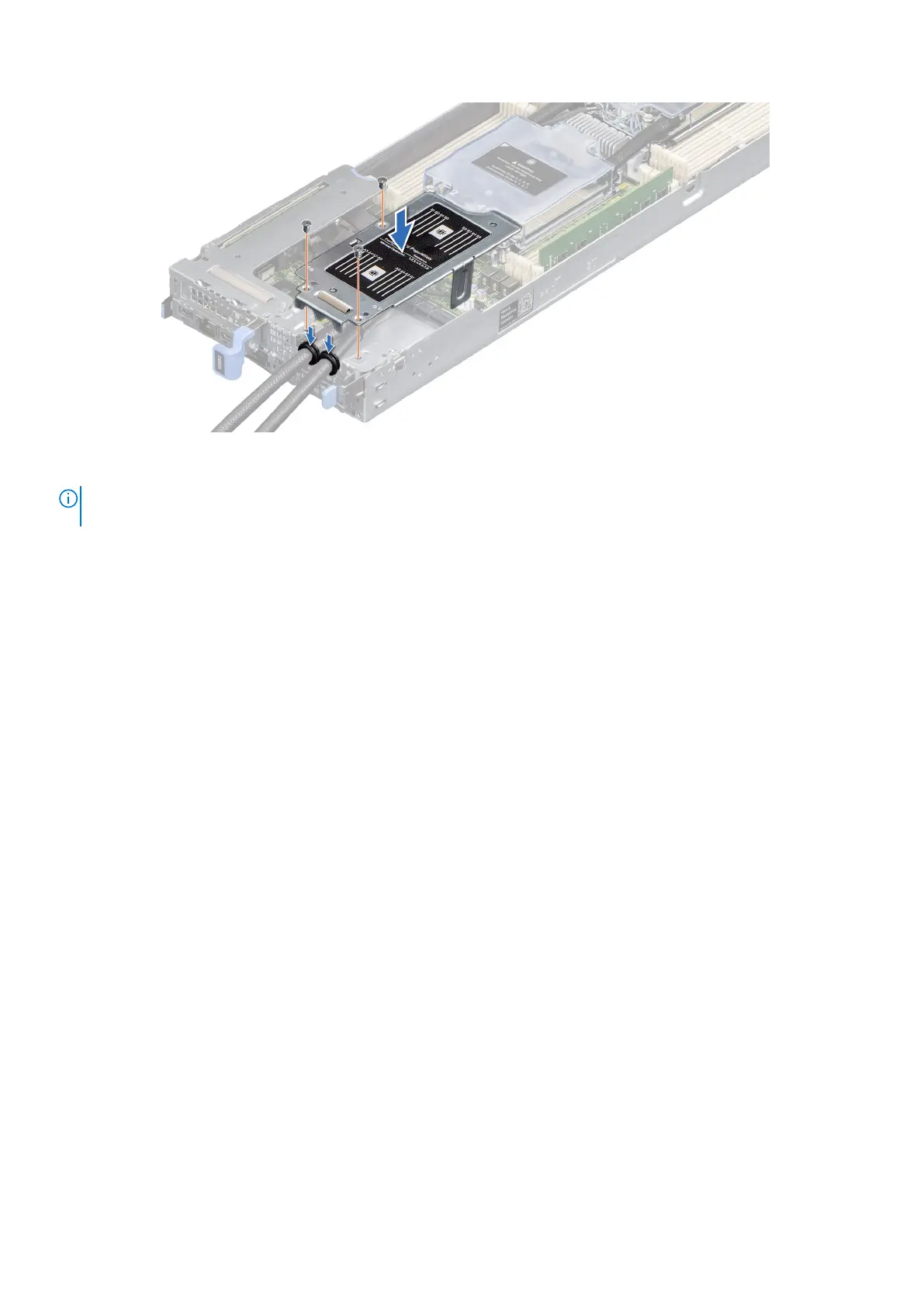

Figure 57. Installing the liquid cooling heat sink cover
NOTE: If applicable, route and engage the liquid cooling heat sink tubes with the groves in the liquid cooling heat sink
bracket.
Next steps
1. If you are removing a faulty liquid cooling heat sink, replace the liquid cooling heat sink with liquid leak sensor, if not, remove
the processor.
2. If you are replacing the liquid cooling heat sink with a standard heat sink replace the heat sink, if not, remove the processor.
3. If applicable, replace the air shroud.
4. Follow the procedure listed in the After working inside your system.
OCP cards
Removing the OCP filler
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Remove the expansion card riser 1.
3. Remove the expansion card riser 2.
Steps
Hold and lift the OCP filler from the OCP slot on the chassis.
60
Installing and removing system components
