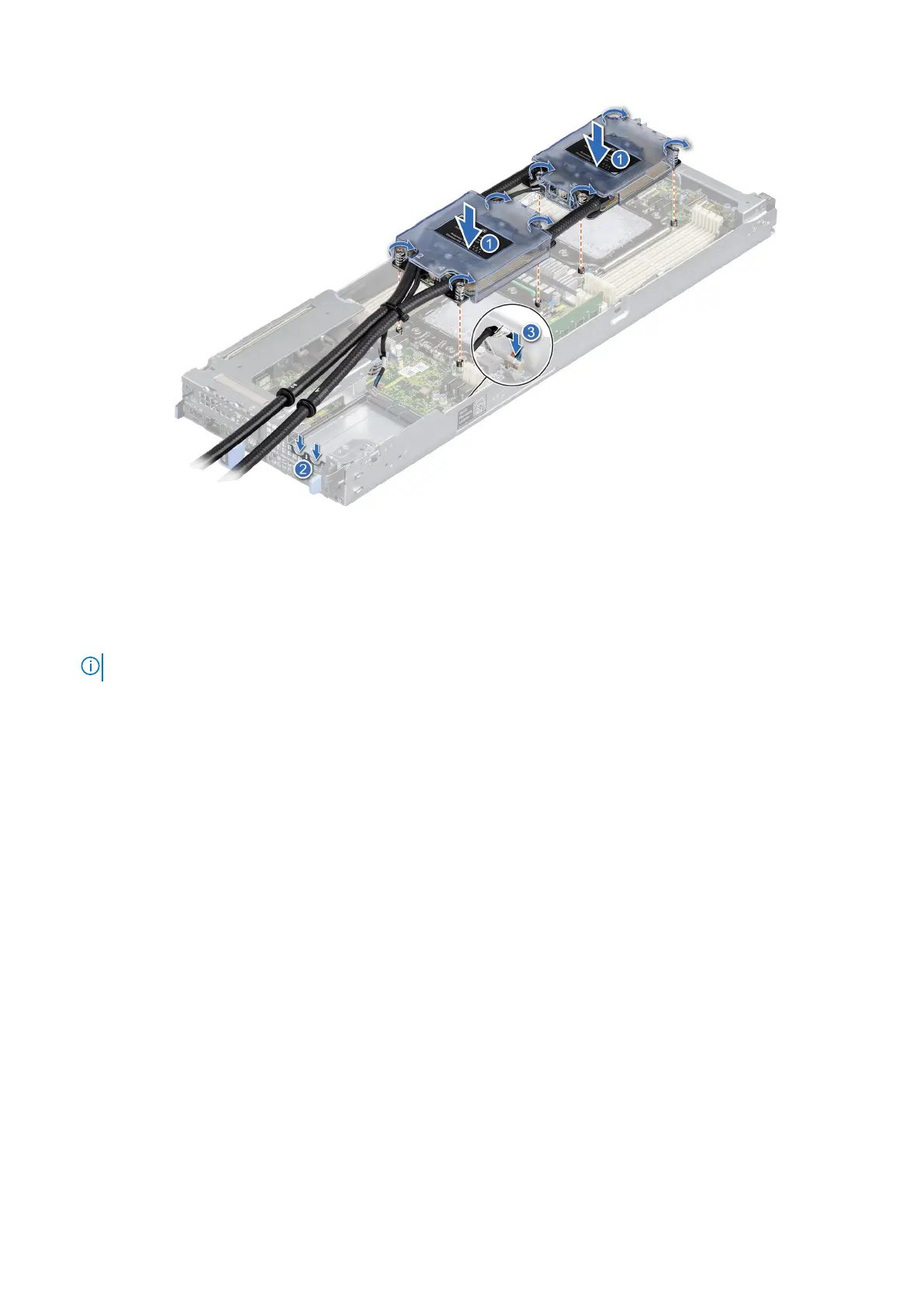

Figure 56. Installing the liquid cooling heat sink with liquid leak sensor
5. Return to the first screw to tighten it.
6. Engage the liquid cooling heat sink with liquid leak sensor tubes on the groves of the liquid cooling heat sink bracket until it is
secured in place.
7. Connect the liquid leak sensor cable on the system board.
NOTE: Liquid leak sensor cable must be connected to the system board, or the entire sensor mechanism does not work.
Next steps
1. Replace the liquid cooling heat sink with liquid leak sensor cover.
2. Follow the procedure listed in the After working inside your system.
Installing the liquid cooling heat sink cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If applicable, remove the air shroud.
4. If applicable, remove the heat sink.
Steps
Using a Phillips #1 screw driver, tighten the screws that secure the liquid cooling heat sink cover.
Installing and removing system components
59
