March 2013 Dell EqualLogic Configuration Guide v14.1 13-122

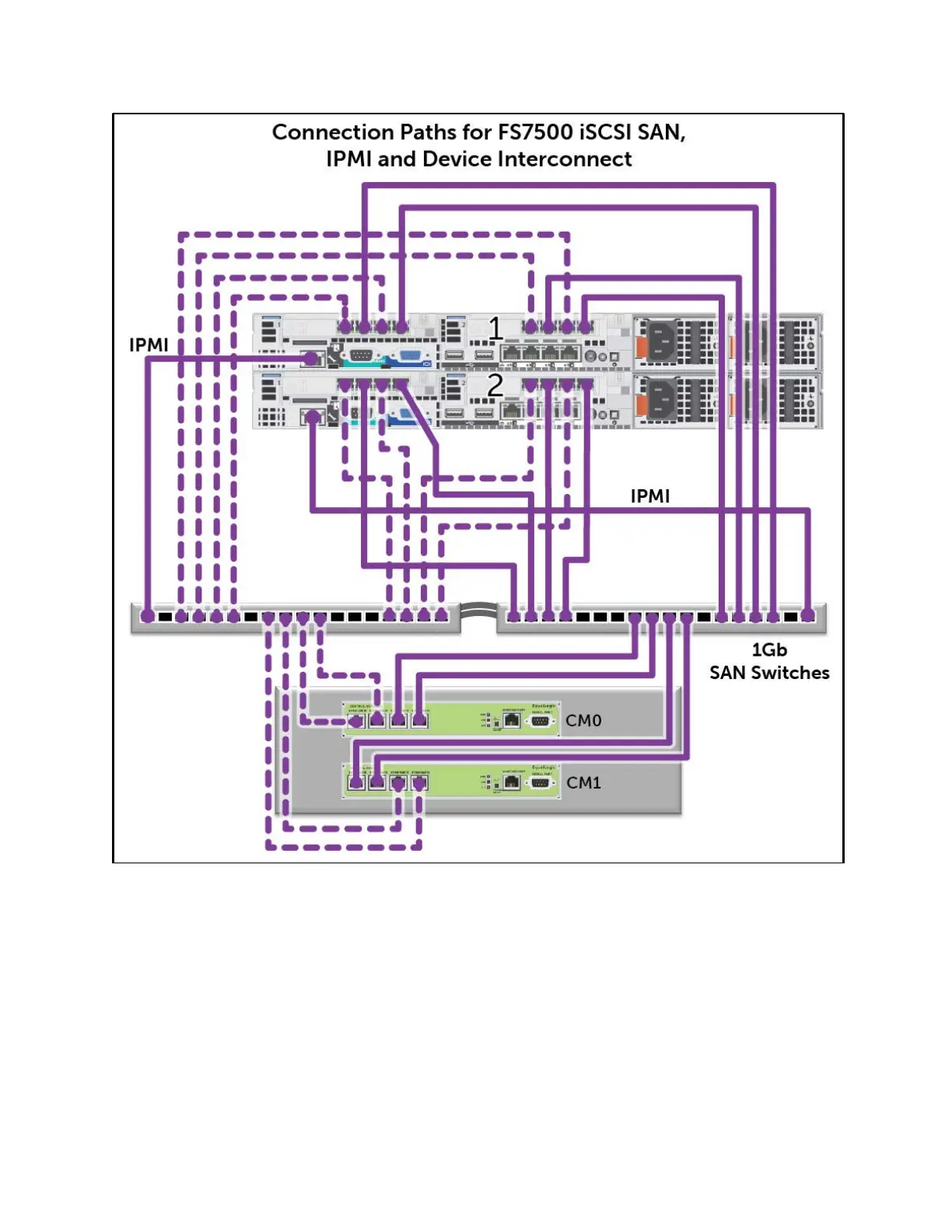

Figure 41 Connection Paths for FS7500 iSCSI SAN, IPMI and Controller Interconnect
13.2 FS7600/7610 connection paths
The Dell EqualLogic NAS appliances require the following networks:
• Client network: Used for client access to the NFS exports and CIFS shares hosted by the NAS
cluster.
• SAN/internal network: Used for internal communication between the controllers and
communication between the controllers and the EqualLogic PS Series SAN. The SAN and Internal
networks use the same set of switches.
