March 2013 Dell EqualLogic Configuration Guide v14.1 14-134
connect the ToR switch to better facilitate inter-array member traffic. An uplink stack, LAG, or VLT LAG
from the blade IOM switch tier to the ToR switch tier is also required.

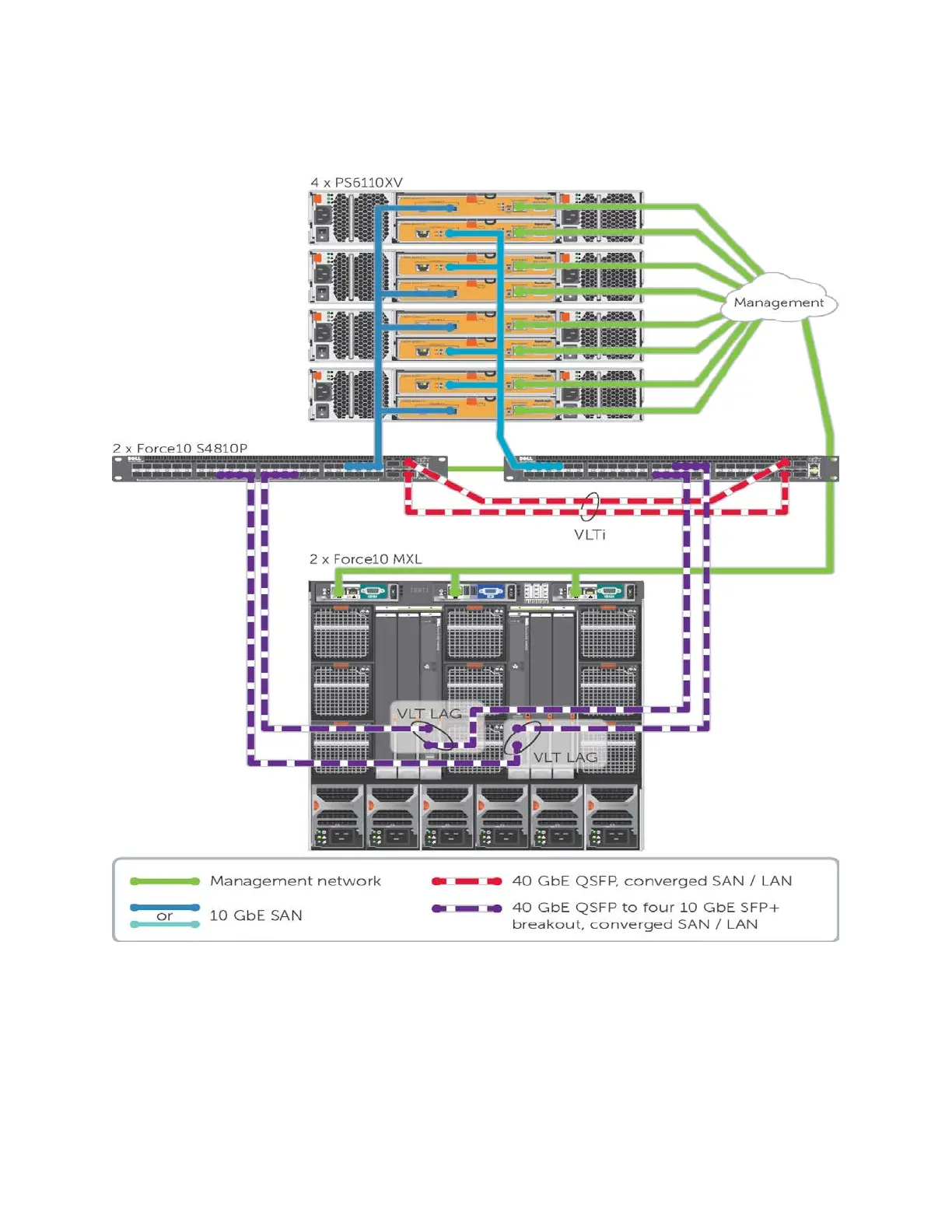

Figure 50 Blade IOM switch with ToR switch (Two tier design)
14.6 Data Center In A Chassis DCB design
Find guidance for incorporating a data center-in-a-chassis with the new Dell EqualLogic PS-M4110
Blade Array, Force10 Blade IO Modules, and PowerEdge M-Series blade servers to form a reliable,
stable, and well performing full end-to-end DCB solution.
