7.3.5 Partially redundant SAN configurations
Each of the SAN configurations shown in this section will allow host connectivity to data stored in the
SAN. These configurations are for reference only, and the methods shown apply to both PS3000-
PS6000 family controllers and PS4100/PS610 family controllers. They are not recommended for
production deployment since they do not provide end-to-end redundant connection paths.
7.3.5.1 Single array controller configurations

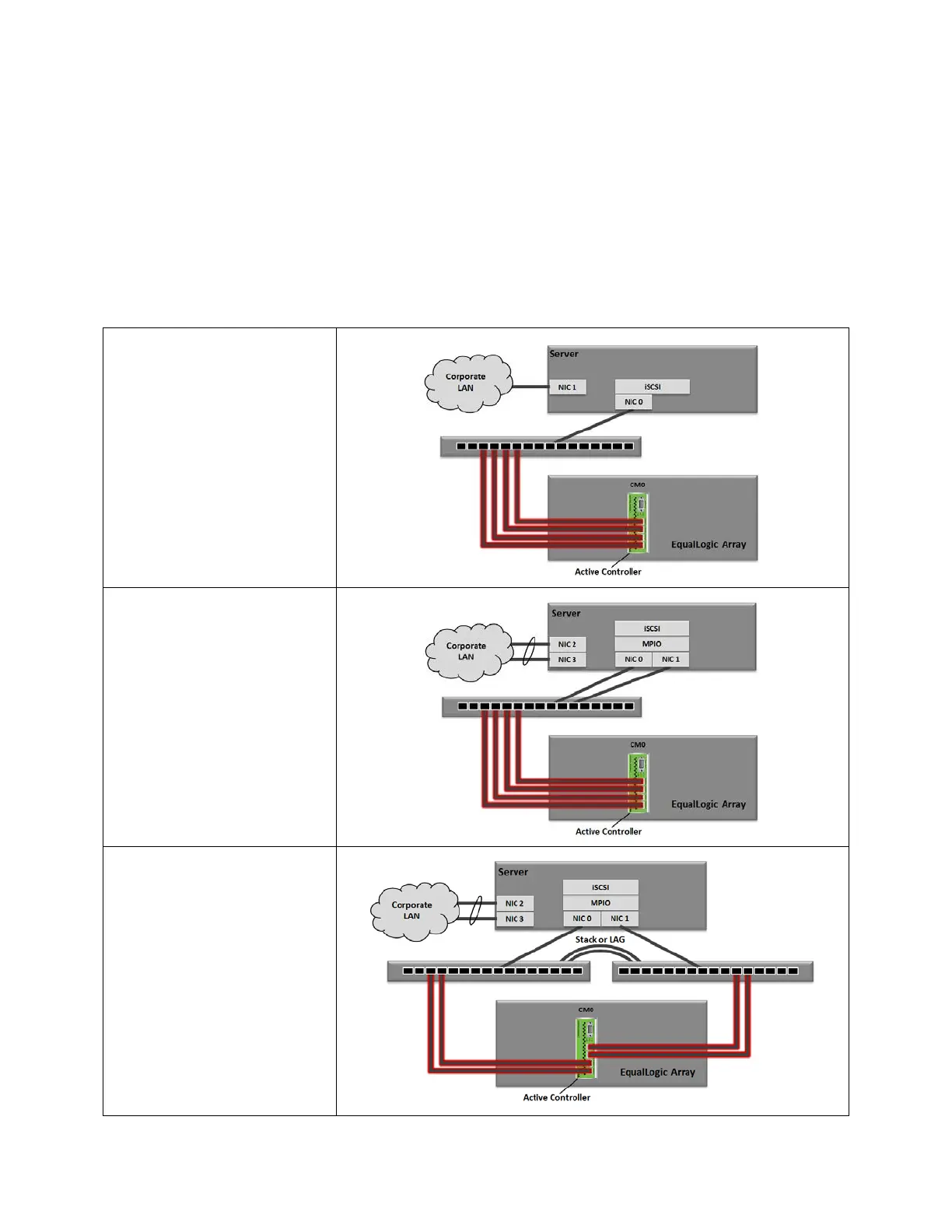

Table 27 below shows configurations using a single array controller.
Table 27 Single controller array configurations
Single NIC
Single Switch
Single Controller
Dual NIC
Single Switch
Single Controller
Dual NIC
Dual Switch
Single Controller
