Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
3. While booting, press F2 to enter System Setup and check that the processor information matches the new system
configuration.
4. Run the system diagnostics to verify that the new processor operates correctly.
Expansion cards
NOTE: When an expansion card is not supported or missing, the iDRAC and Lifecycle Controller logs an event. This does
not prevent your system from booting. However, if a F1/F2 pause occurs with an error message, see Troubleshooting
expansion cards section in the Dell EMC PowerEdge Servers Troubleshooting Guide at www.dell.com/poweredgemanuals.
Expansion card installation guidelines

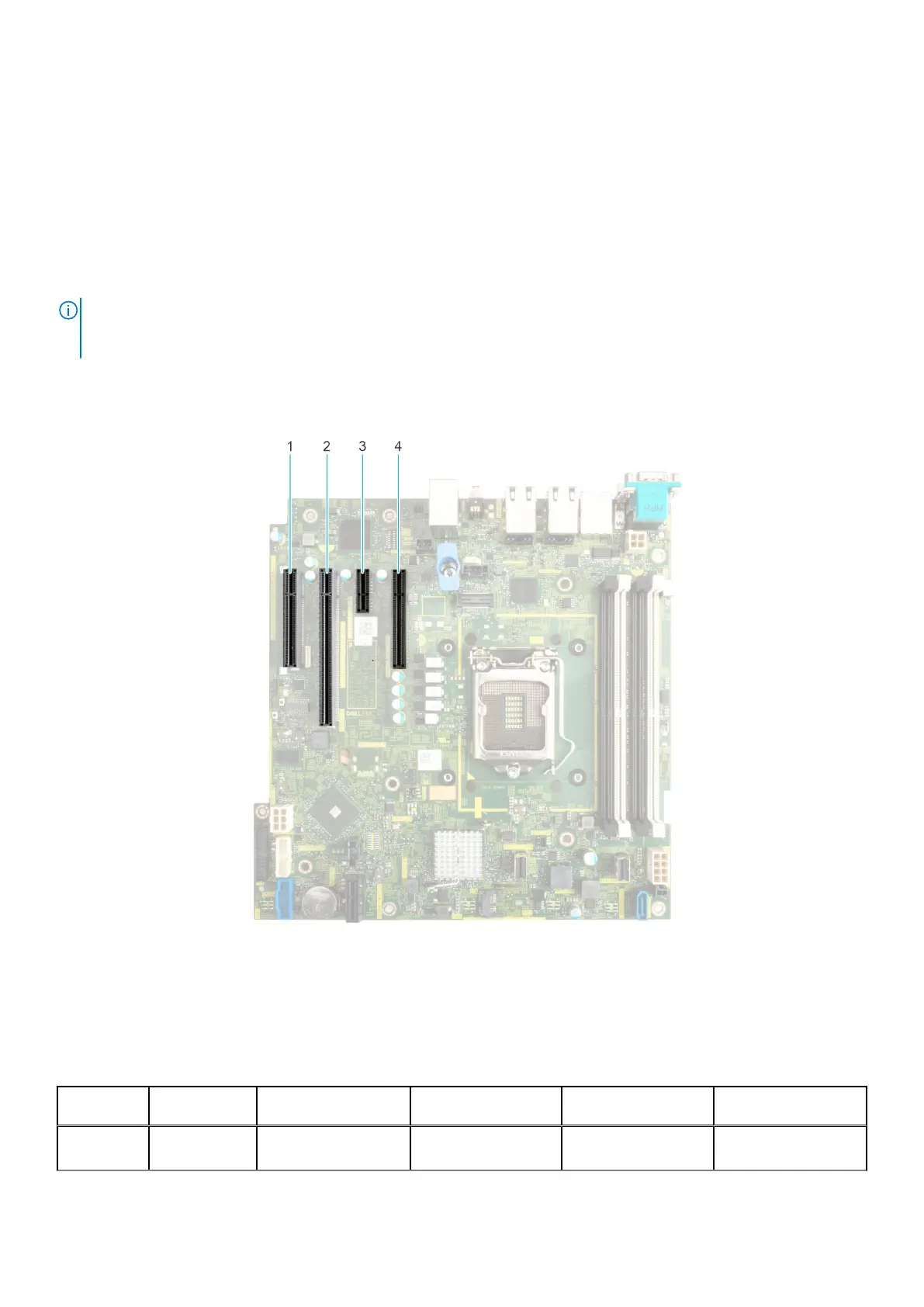

Figure 54. Expansion card slot connectors
1.
Slot 1 2. Slot 2
3. Slot 3 4. Slot 4
The following table describes the expansion card riser configurations:
Table 20. Expansion card slots supported on the system board
PCIe slot Risers
Processor
connection
PCIe slot height PCIe slot length PCIe slot width
Slot 1
(Gen4)
N/A Processor 1 Full height Half length x4 link in x8 slot
Installing and removing system components 67
