Dell G0N7D User Manual

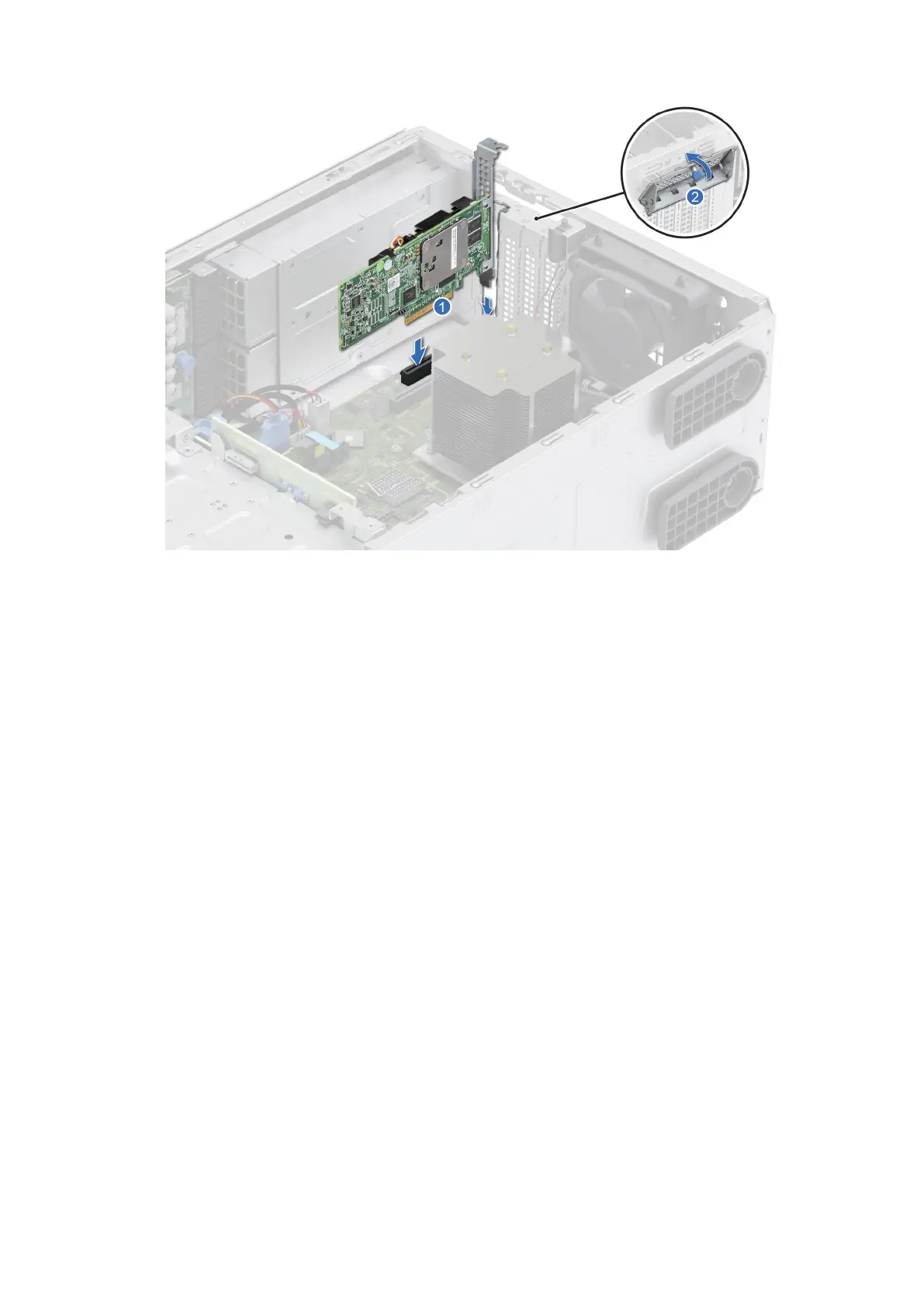

Figure 58. Installing an expansion card
5. Tilt the metal bracket and tighten the captive screw.
Next steps
1. If required, reconnect the cables to the expansion card.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system.
Optional BOSS S2 module
Removing the BOSS S2 module blank
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the front bezel.
Steps
Loosen the captive screw and pull out the BOSS S2 module blank from the system bay.
Installing and removing system components
71

Dell G0N7D Specifications

General

Brand	Dell
Model	G0N7D
Category	Server
Language	English
