Dell G0N7D User Manual

Steps
Press the release latch, and holding the PSU handle slide the PSU out of the PSU bay.

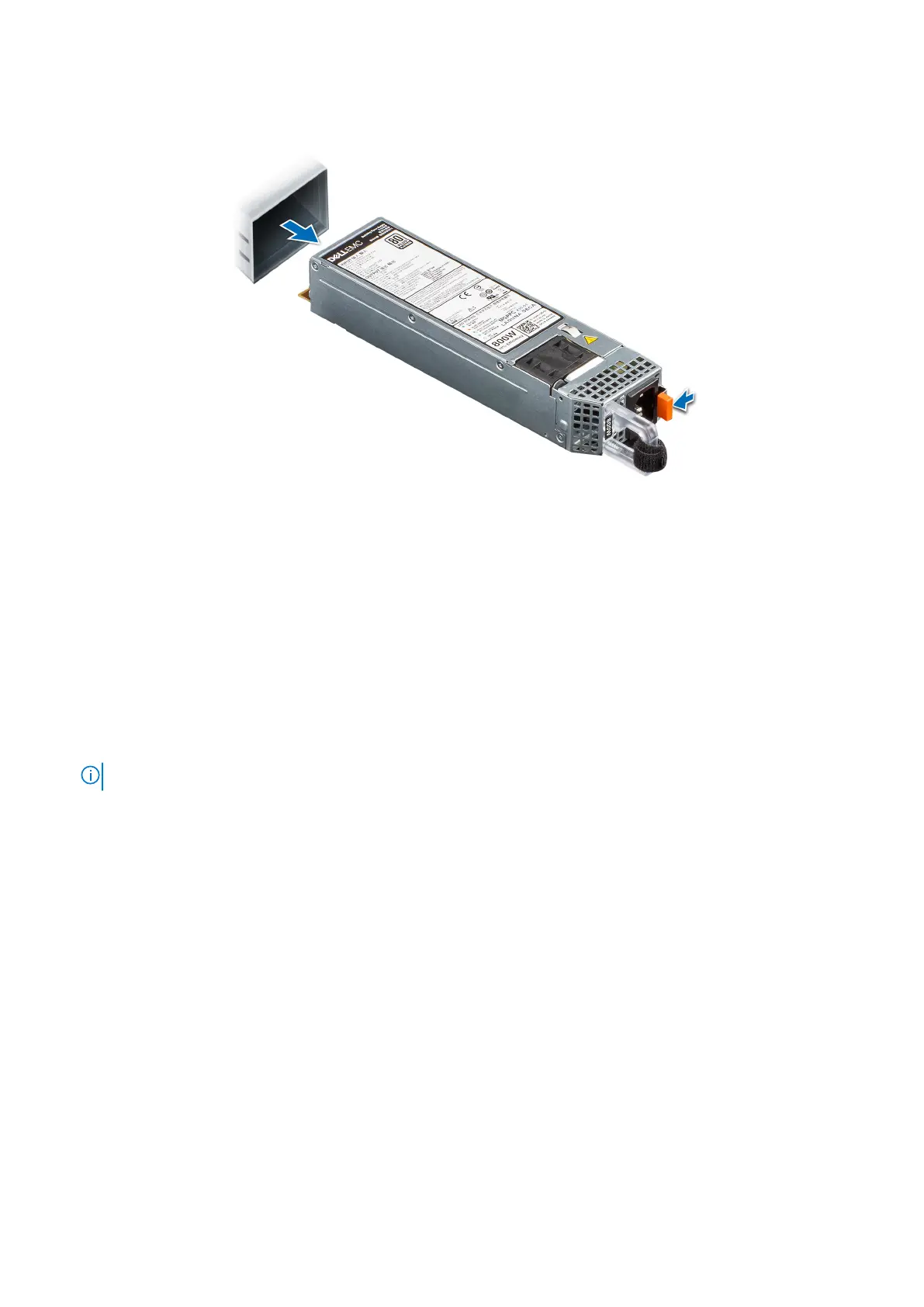

Figure 79. Removing a power supply unit
Next steps
Replace the PSU or install the PSU blank.
Installing a power supply unit
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. For systems that support redundant PSU, ensure that both the PSUs are of the same type and have the same maximum
output power.
NOTE: The maximum output power (shown in watts) is listed on the PSU label.
3. Remove the PSU blank.
Steps
Slide the PSU into the PSU bay until the release latch snaps into place.
90
Installing and removing system components

Dell G0N7D Specifications

General

Brand	Dell
Model	G0N7D
Category	Server
Language	English
