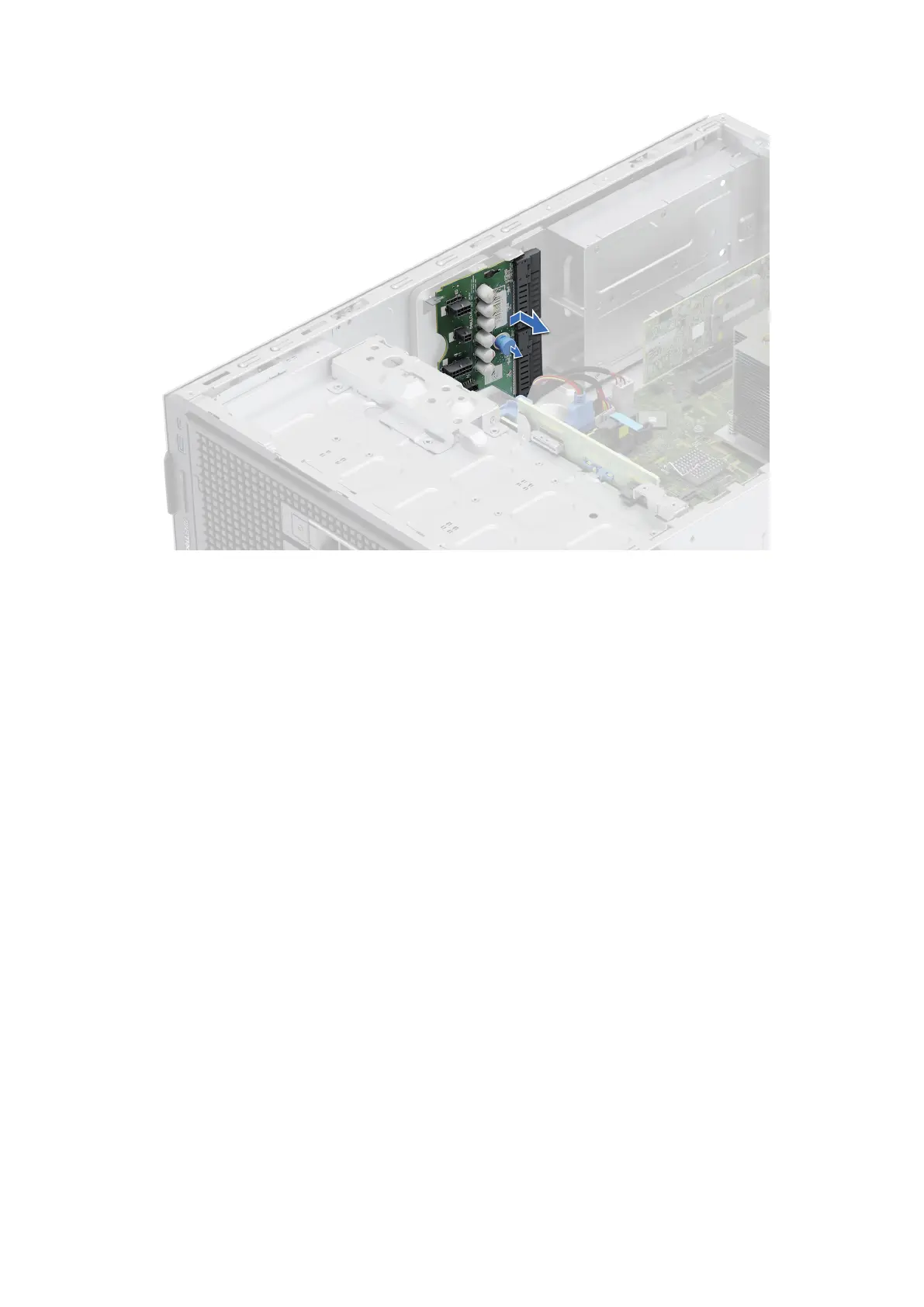

Figure 85. Removing the power interposer board
Next steps
1. Replace the power interposer board (PIB).
Installing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the power supply units.
4. Remove the air shroud.
Steps
1. To install power interposer board (PIB), align the PIB at an angle with the hooks on the system.
2. Slide the PIB towards the front of the system until it snaps into place.
Installing and removing system components
95
