Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips #0 screwdriver
● Phillips #1 screwdriver
● Plastic scribe-Recommended for field technician
Screw List

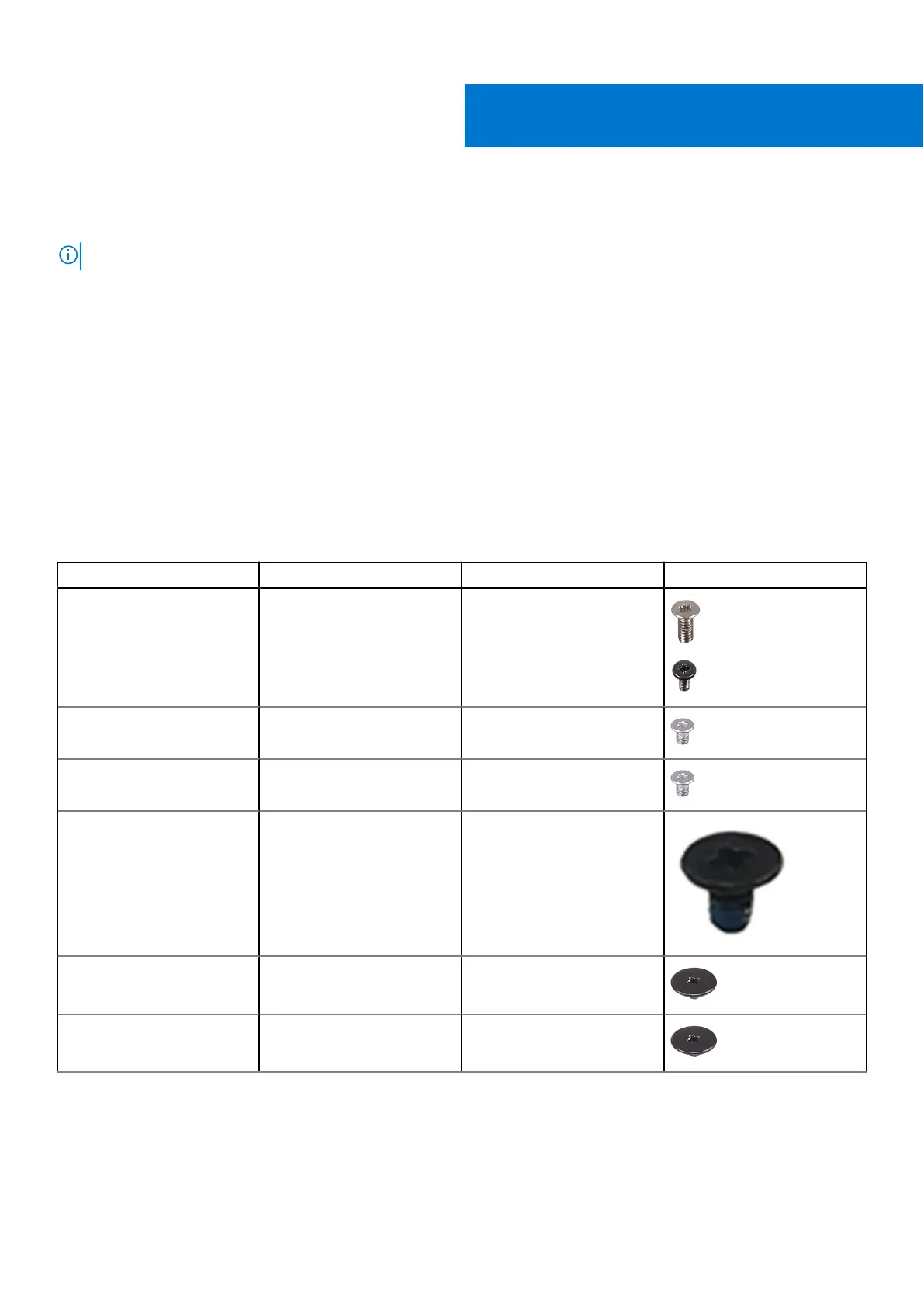

The following table shows the screw list and the images for different components.
Table 1. Screw Size List
Component Screw type Quantity Image
Base cover M2x5
Captive screw
6
2
Battery 3-cell M2x3 3
Battery 4-cell M2x3 4
WLAN M2x3 1
M.2 2230 SSD M2x2 1
M.2 2280 SSD M2x2 1
2
