Steps

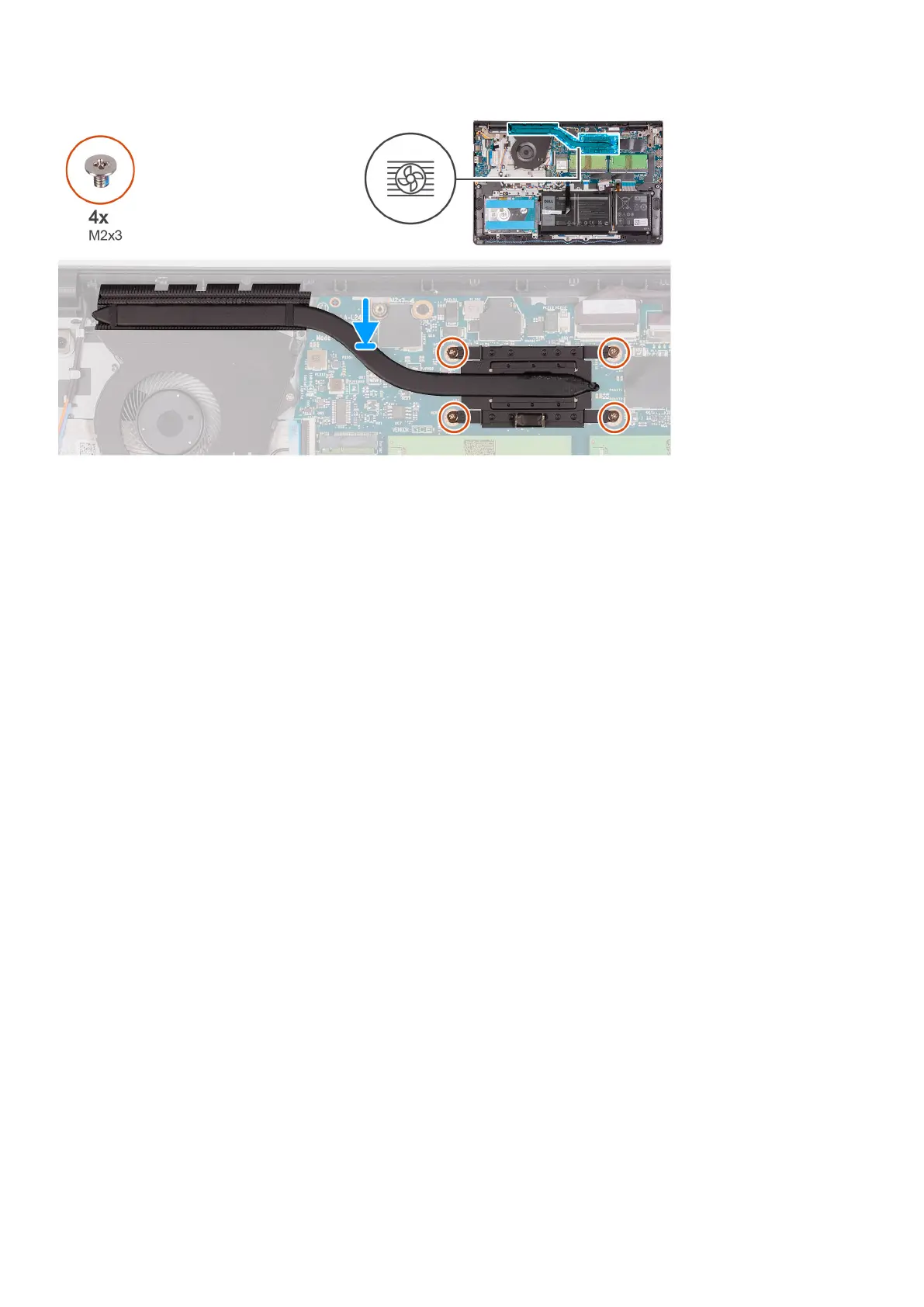

1. Place the heat sink on the system board and align the captive screws on the heat sink with the screw holes on the system
board.
2. Tighten the four (M2x3) screws to secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Exit service mode.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Removing the heat sink - Discrete
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
About this task
The following images indicate the location of the discrete heat sink and provides a visual representation of the removal
procedure.
Removing and installing components
39
