Dell Inspiron 3511 3GN50 User Manual

Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the WLAN card.
About this task

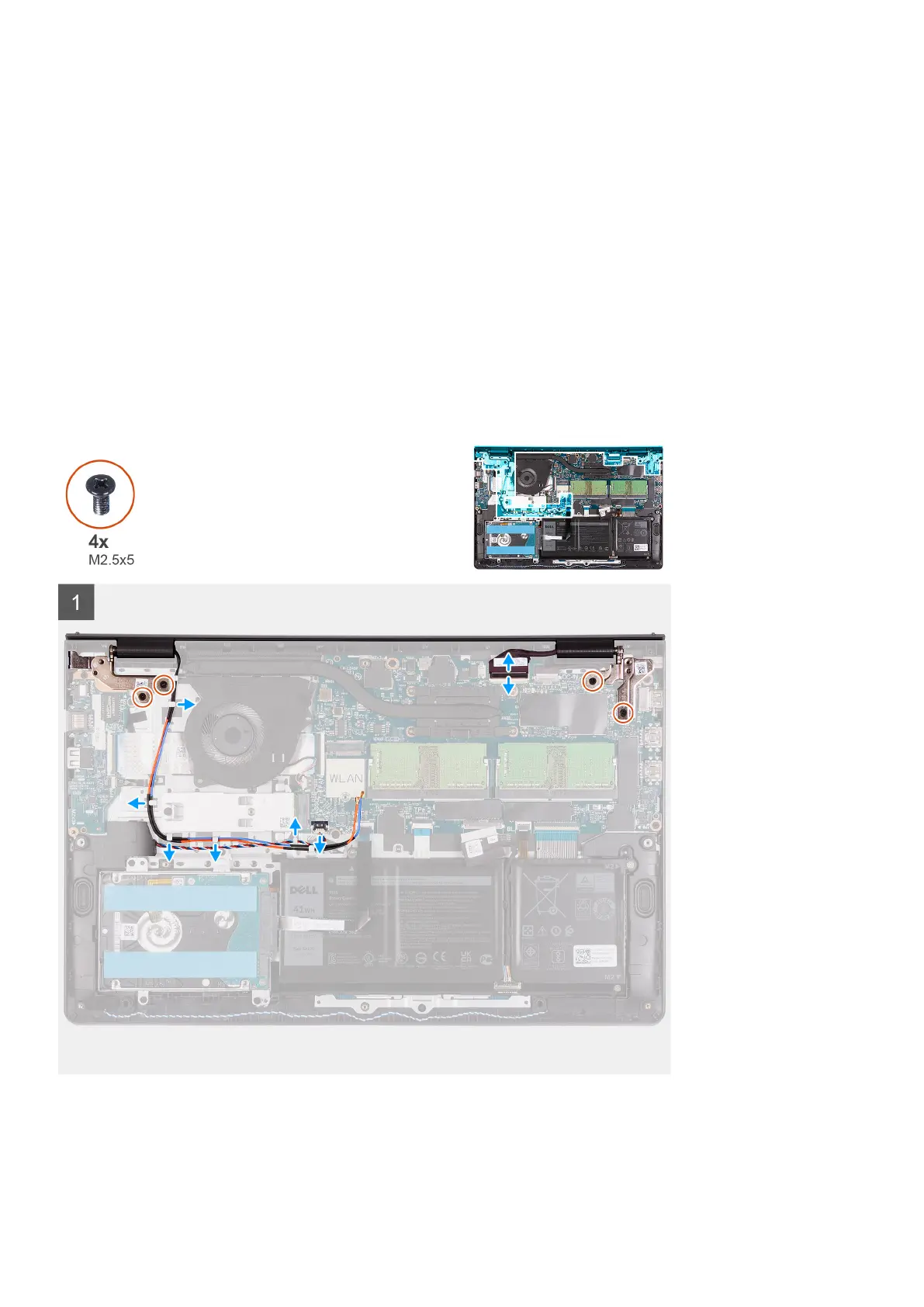

The following images indicate the location of the display assembly and provides a visual representation of the removal
procedure.
48 Removing and installing components
