Steps

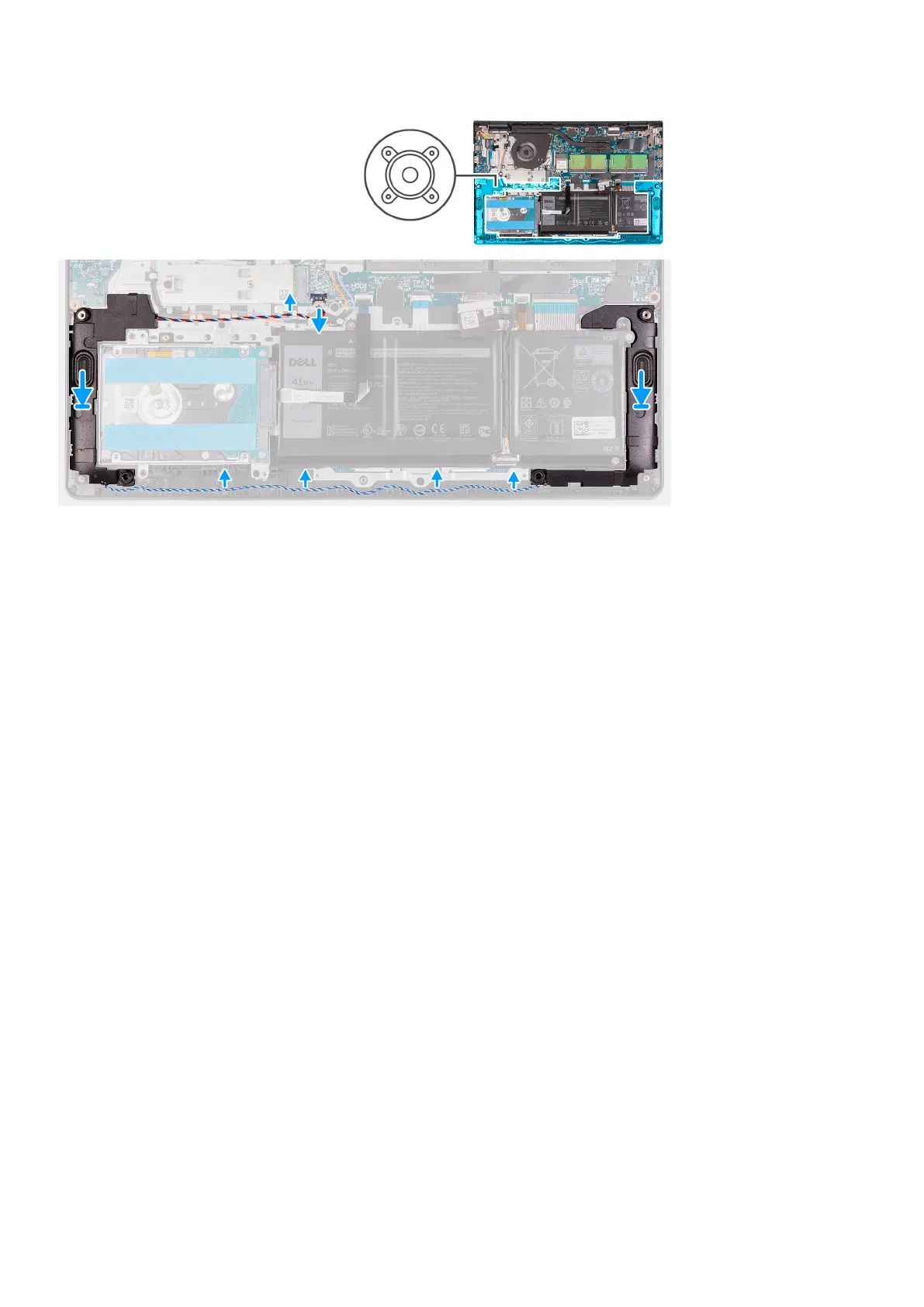

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly..
3. Connect the speaker cable to the connector on the system board .
Next steps
1. Install the base cover.
2. Exit service mode.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
IO board
Removing the I/O board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
About this task
The following images indicate the location of the I/O board and provides a visual representation of the removal procedure.
Removing and installing components
43
