3. Remove the power-adapter port module from the computer.
NOTE: The power-adapter port is secured in place only by the right display hinge. Ensure that the power-adapter port
does not fall off from the slot after the right hinge is removed.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

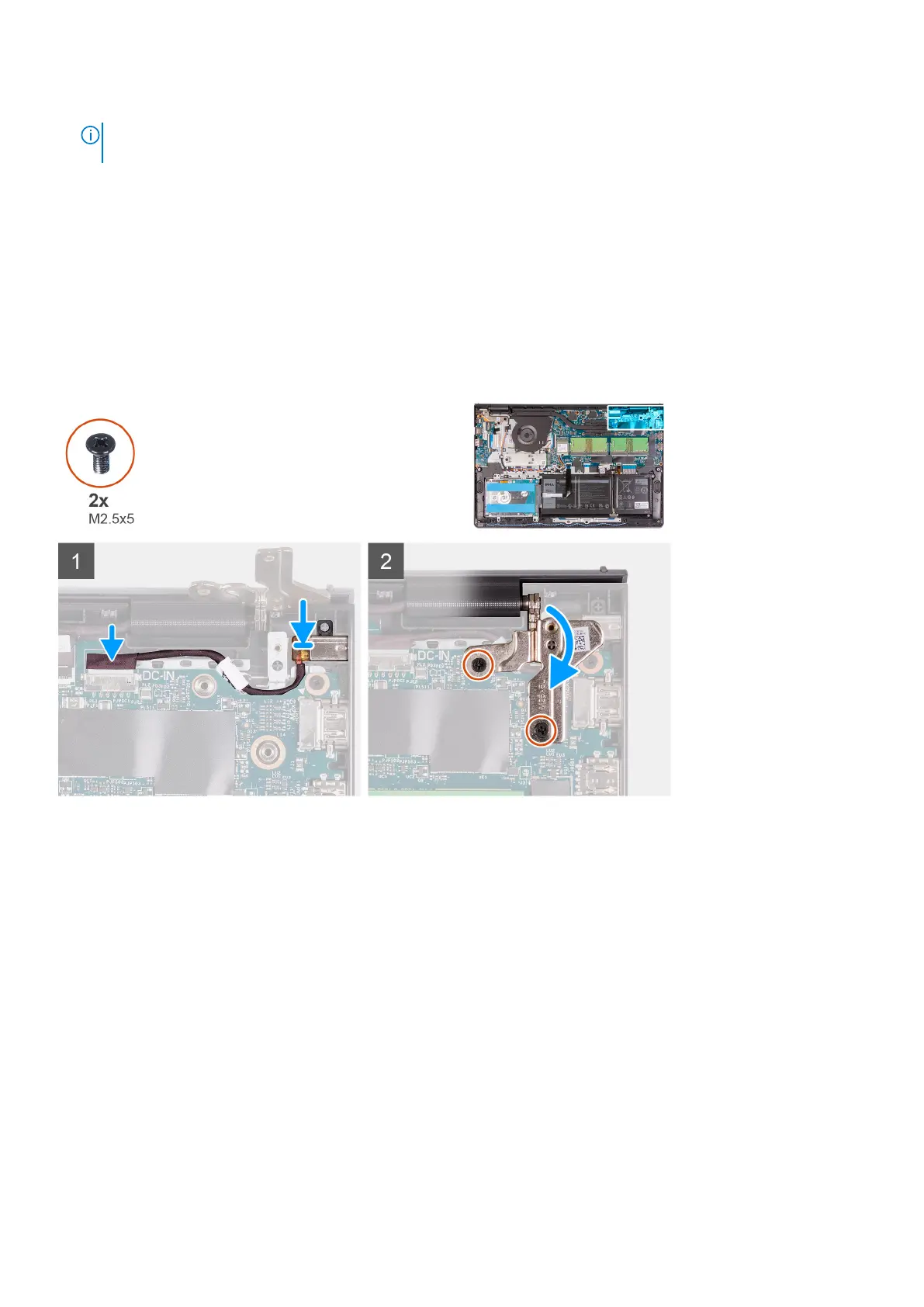

The following images indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
Steps
1. Place the power adapter port module into the slot provided on the palmrest.
2. Connect the power adapter cable to the connector on the system board.
3. Fold the right hinge back down and install the two (M2.5x5) screws to secure it.
Next steps
1. Install the base cover.
2. Exit service mode.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Removing and installing components
79
