1. Rremove the seven (M2x3) screws that secure the heat sink to the system board.
2. Lift the heat sink off the system board.
Installing the heat sink - Discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

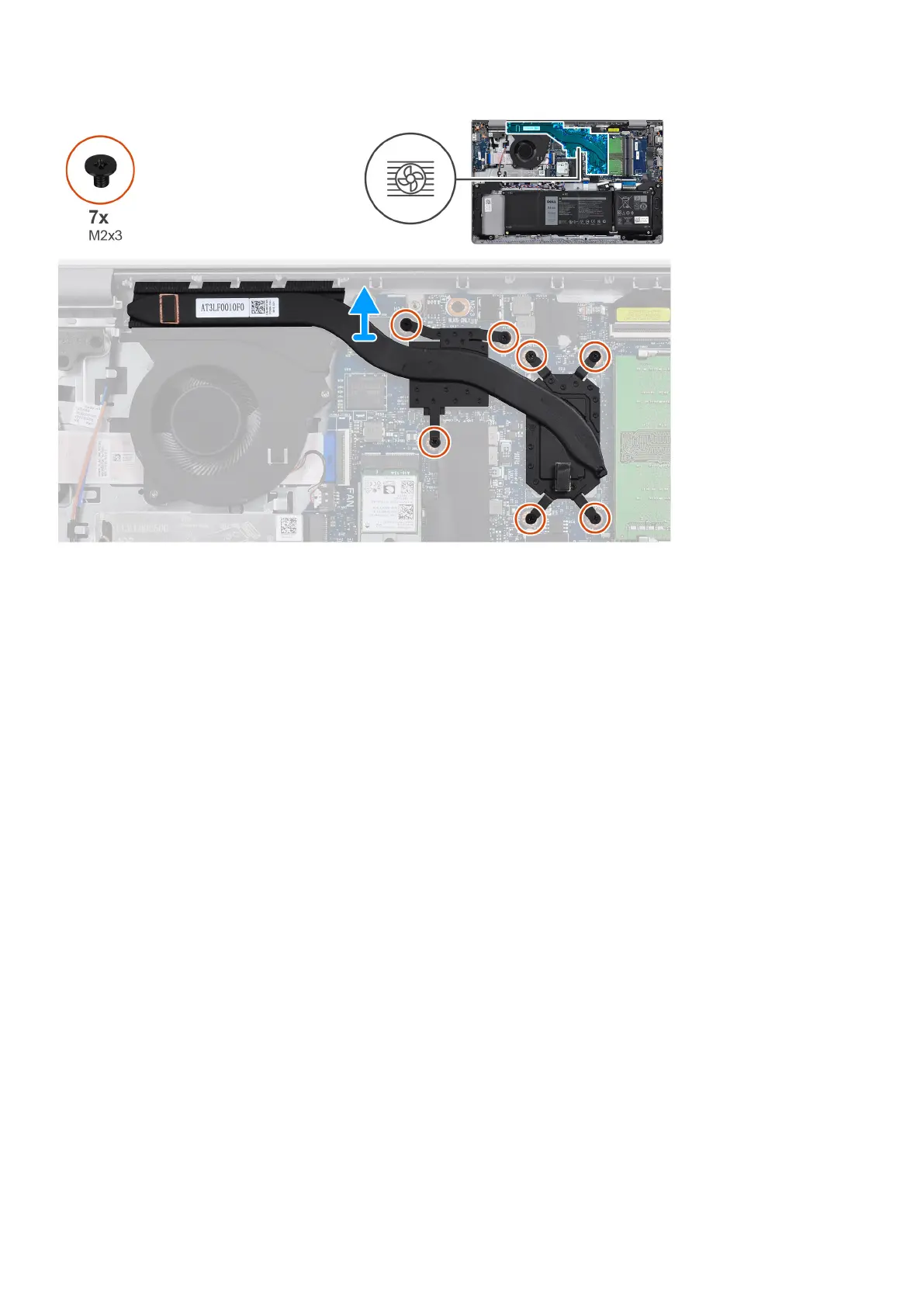

The following images indicate the location of the discrete heat sink and provides a visual representation of the installation
procedure.
40
Removing and installing components
