5. Trackpad
6. Trackpad bracket
7. DC-in port
8. SSD thermal bracket
9. Solid-state drive(SSD)
10. Palm-rest and keyboard assembly
11. Display assembly
12. Memory modules
13. WLAN card
14. IO daughter-board
15. System board
16. Heatsink
17. System fan
18. IO daughter-board FFC
19. Hard-drive assembly
Secure Digital Card

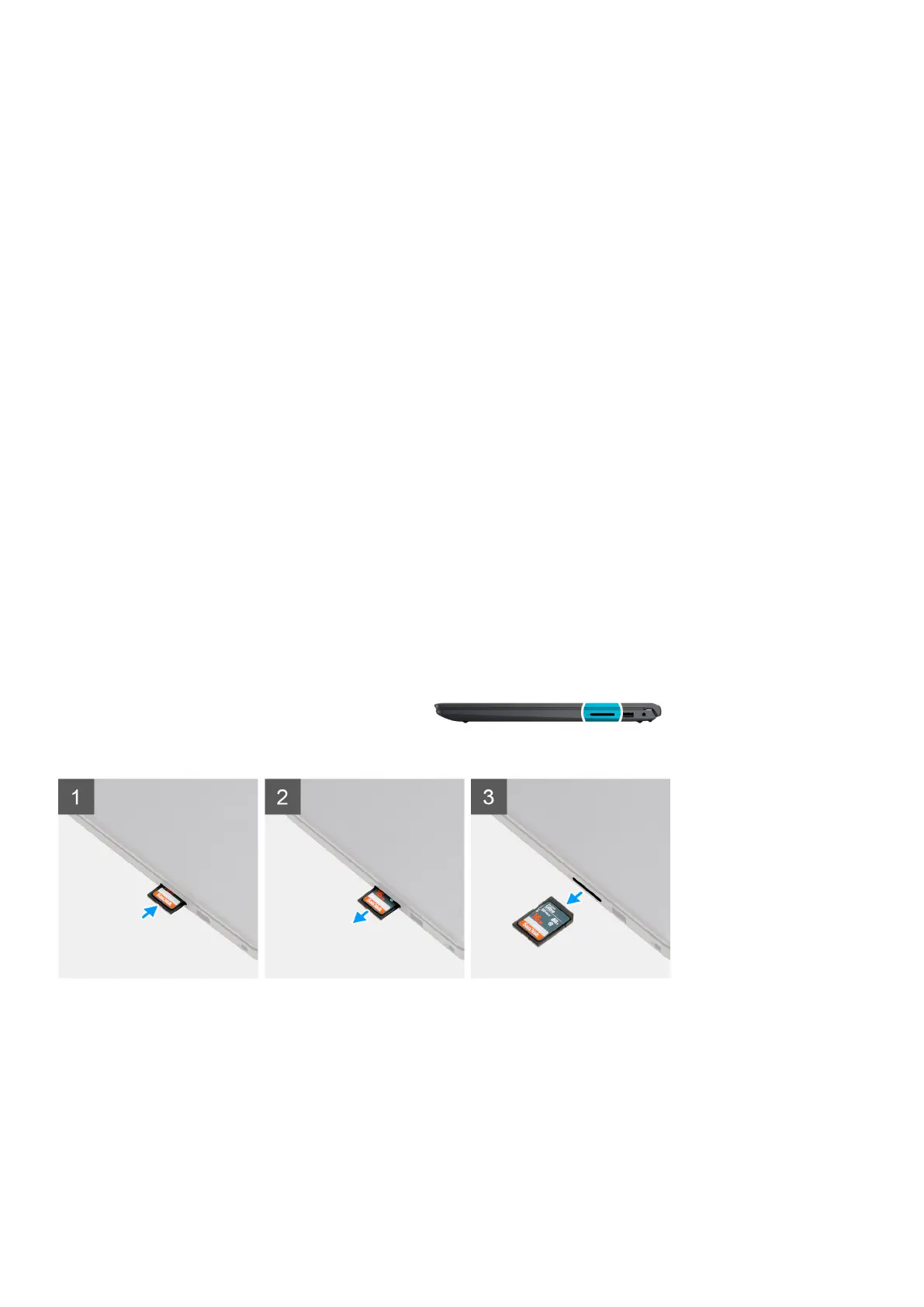

Removing the Secure Digital card
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
Steps
1. Push the secure digital card to release it from the computer.
2. Slide the secure digital card out of the computer.
Installing the Secure Digital card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
15
