Dell Latitude C840 - S-Video; Composite Video; Docking Connector

Pin Assignments for I/O Connectors: Dell Latitude C840 Service Manual
S-Video
Pin Signal
1 GND
2 GND
3 DLUMA-L
4 DCRMA-L
Composite Video
Pin Signal
5 SPDIF
6 DCMPS-L
7 SPGND

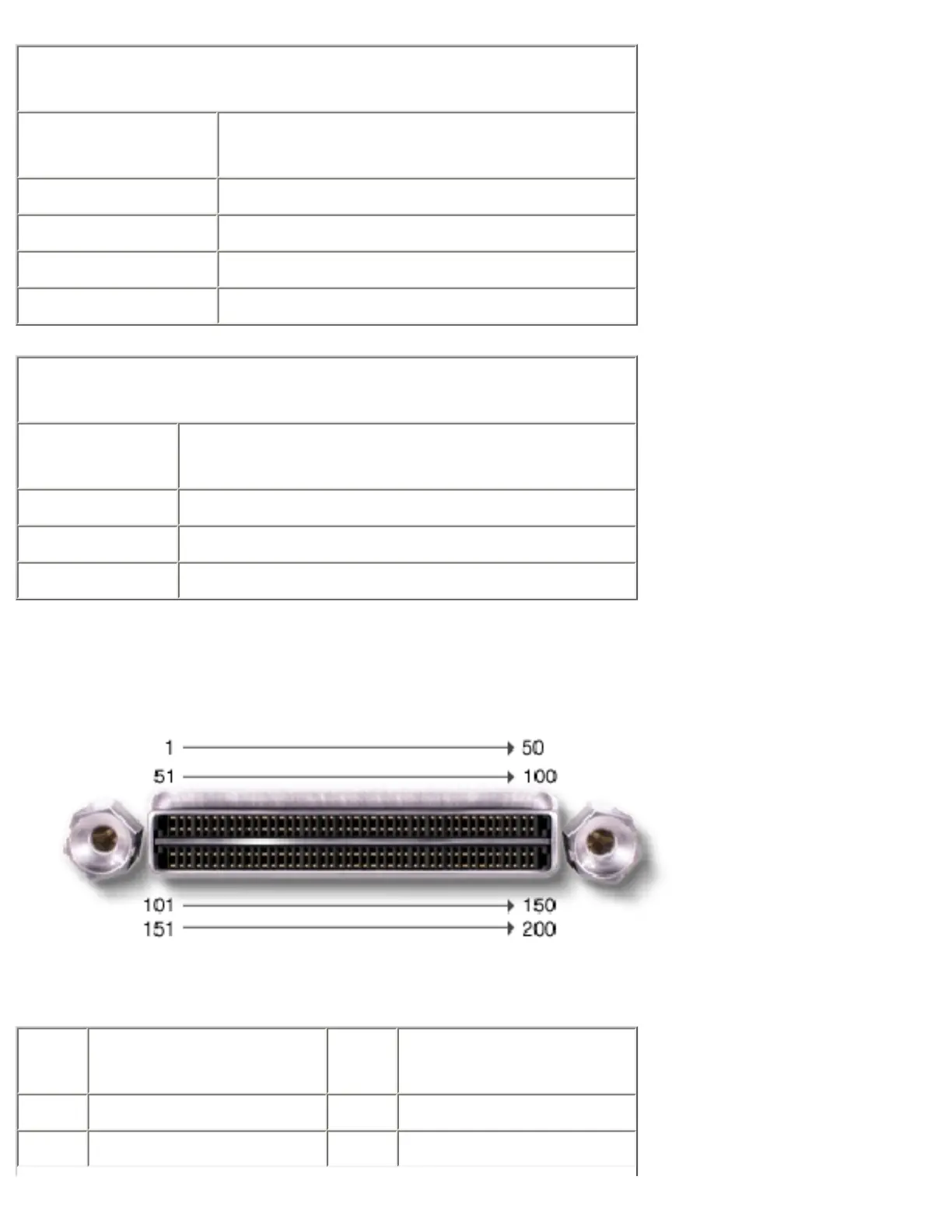

Docking Connector
Pin Signal Pin Signal
1 STRB#/5V 101 VGA_GRN
2 PD0 102 GND
